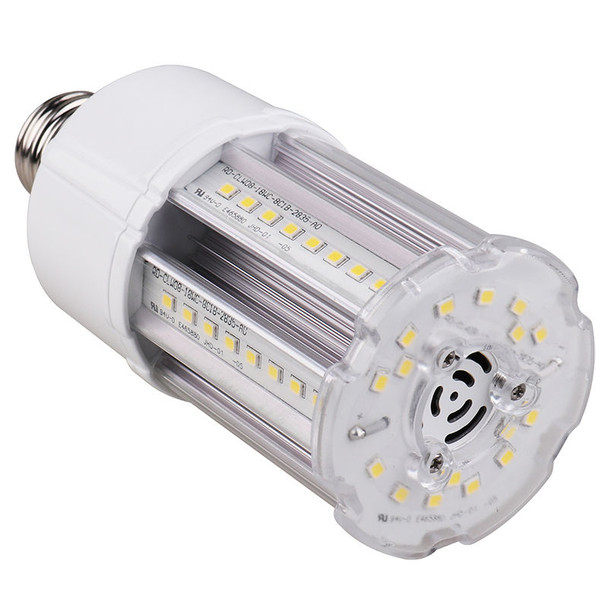

Upgrade Your Lighting with the 18W LED Corn Lamp
This Corn LED lamp is designed to provide superior illumination for a wide range of environments. Featuring an E26 medium base and consuming just 18 watts, this lamp produces between 2,250 and 2,610 lumens. Choose between 3000K or 5000K color temperature to suit your specific lighting needs. With a robust design that includes a PC and aluminum housing, this light has a rated life of up to 50,000 hours and comes with a 5-year limited warranty.
Features That Make a Difference
- E26 medium base
- Durable PC + Aluminum housing
- 5-Year Warranty
- Extended life of 50,000 hours
Advanced Electrical Specifications
- Voltage: 120-277V AC 50/60Hz
- Power: 18 watts
- Power Factor: >0.9
- AC Direct / Ballast Bypass
- Total Harmonic Distortion (THD): ≤20%
- Efficacy: 125/145 LPW
Robust Mechanical Design
- PC and Aluminum Housing with Sealant Pouring for Whole Driver
- Meets 4KV surge immunity level
- Operating temperature range: -40°F to 176°F
- Minimum Enclosed Space Dimension: 11.8”(H) x 7.1”(D) and 593 Cubic inches
- Rated for damp locations
Exceptional Lighting Characteristics
- LED SMD Type: Edison 2835
- Total Lumens: 2,250 - 2,610 LM
- Color Temperature: 3000K/5000K
- Color Rendering Index (CRI): ≥80
- Beam Angle: 360°
Wide Range of Applications
Perfect for supermarkets, warehouses, garages, residential areas, offices, hotels, hospitals, schools, and high bay retrofitting projects.
Resources and Downloads
SKU | WM-CL-EHL-18W |
---|---|
Weight | 8.00 LBS |
Light Source | LED |
Fixture Size | 5.70"x2.36" |
Lumen Output | 2,250-2,610lm |
L70 Expected Life (hours) | 50,000hrs |
Luminaire Efficacy Rating (LER) | 125lm/w, 145lm/w |
Color Rendering Index (CRI) | > 80 |
Driver Type | 120-277VAC |
Color Temperature (CCT) | 3000K |
Total Input Watts | 5000K |
Total Input Watts | 18 |
Total Input Watts | 18W |
Lumen Output | 2250 |
Voltage | 120-277VAC |
Color Rendering Index (CRI) | >80 |
L70 Expected Life (hours) | 50,000 |
Listings and Ratings | UL, DLC Premium |
Lumen Output | 2610 |
Color Temperature (CCT) | 5000K |
