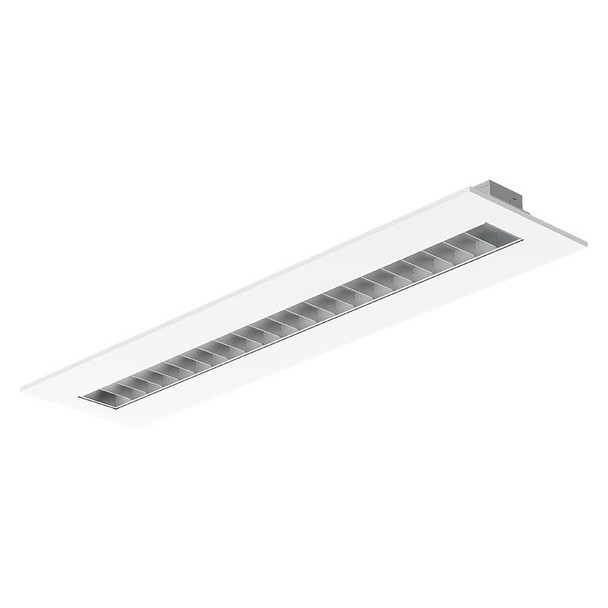

The 1x4 Architectural Grille Troffer is a versatile lighting solution for commercial and architectural spaces. It features selectable wattage and color temperatures, allowing for customizable and energy-efficient illumination.

Key Features and Benefits

• Selectable wattage: 24W, 28W, 36W
• Selectable color temperatures: 3500K, 4000K, 5000K
• High efficacy of 120 LPW
• High quality LED chips for efficiency and heat dissipation
• Polycarbonate lens for durability
• 70,000 hours rated life
• 0~10V dimming capability
• 7-year warranty

Specifications

• Voltage: 120-277V AC 50/60Hz
• Lumen outputs: 2880LM, 3360LM, 4320LM
• Color Rendering Index: CRI ≥ 80
• Operating temperature: -22°F to 104°F
• IP Rating: IP20 for indoor use only

Common Uses

Ideal for offices, schools, healthcare, and retail settings, ensuring seamless integration and optimal visual comfort.
