2X2 Grille Troffer 24/28/36W 35/40/50K

By Westgate Manufacturing

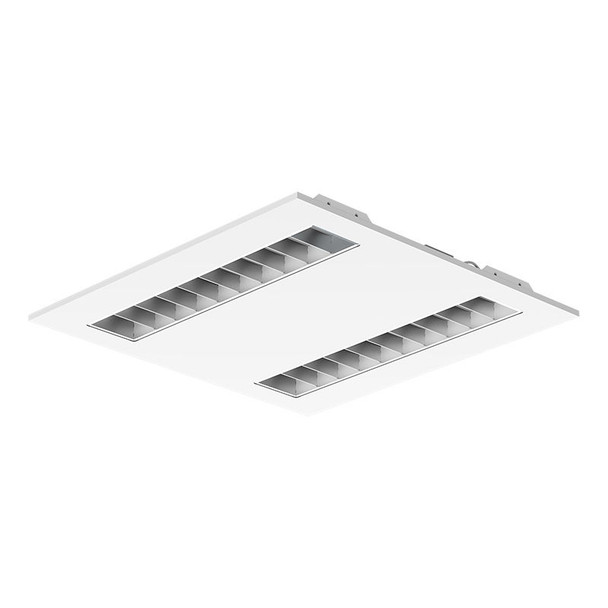

2x2 Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K
Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K
Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K
2x2 Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K
Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K
Architectural Grille Troffer, Wattage and CCT Selectable, 24W/28W/36W, 120lm/w, 35K/40K/50K

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

2X2 Grille Troffer 24/28/36W 35/40/50K

$158.45
MSRP: $176.78
You save $ 18.33 (10%)
  • SKU: WM-LTRG-2X2-MCTP
  • UPC: 840378312080
  • MPN: LTRG-2X2-MCTP

Quick Overview

2X2 Grille Troffer 24/28/36W 35/40/50K (wattage: 24W/28W/36W; lumens: 2880/3360/4320; efficacy: 120LM/W; CCT: 35K/40K/50K; voltage: 120-277V)

IP40
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 258
Free shipping on this item
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

View Details



Choose Options
Total: Inc. Tax
Total: Ex. Tax
Description

The 2x2 Architectural Grille Troffer offers customizable illumination for commercial and architectural spaces. Featuring adjustable light output and color temperatures (3500K-5000K), it provides energy-efficient, versatile, and aesthetically pleasing lighting.

Key Features and Benefits

  • High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
  • Selectable Multi-CCT & Power Switches Inside The Driver Box
  • Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
  • Polycarbonate Lens
  • 70,000 Hours Rated Life
  • 7-Year Warranty
  • Dimmable: 0~10V Dimming

Specifications

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 24W/28W/36W
  • Power Factor: >0.92
  • Efficacy: 120 LPW
  • Color Temperatures: 3500K/4000K/5000K
  • Color Rendering Index: CRI ≥ 80
  • Total Lumens: 2880LM/3360LM/4320LM
  • Operating Temp: -22°F to 104°F
  • IP Rating: IP20 Indoor use only

Common Uses

Ideal for offices, schools, healthcare, and retail settings, this sleek fixture ensures seamless integration and optimal visual comfort.

RESOURCES AND DOWNLOADS

Architectural Grille Troffer Spec Sheet
