Description

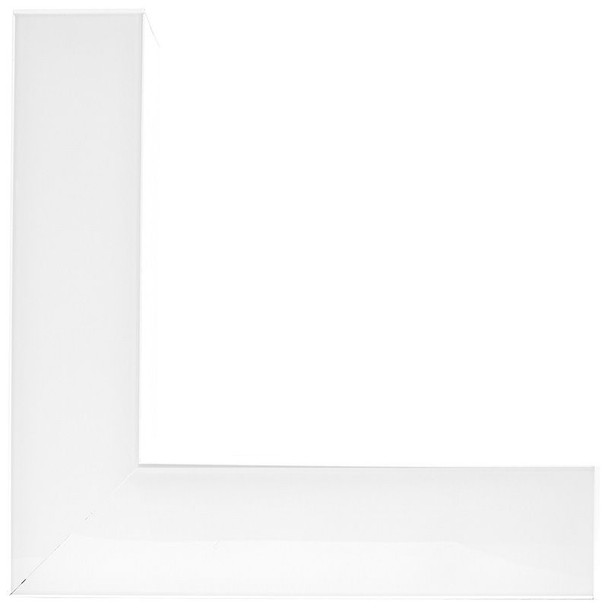

Experience the pinnacle of lighting innovation with the SCX Superior Architectural Seamless Linkable Linear Lighting System. Offering 20 watts of superior LED illumination, this light fixture delivers between 2,197 and 2,390 lumens with an adjustable color temperature ranging from 3000K to 5000K. Designed for up to 50,000 hours of reliable performance, our lighting system comes with a 5-year limited warranty.

Versatile Design for Various Applications

This customizable linear lighting can be tailored to fit your space perfectly. Whether you need it surface-mounted, recessed, or suspended, its sleek, low-profile design fits effortlessly into storage rooms, offices, conference rooms, retail spaces, hallways, educational facilities, hotels, and restaurants.

Key Features

LED Superior Architectural Lights for enhanced aesthetics and performance
Seamless Linkable Linear Lighting System for continuous, uninterrupted light
Opal Polycarbonate Lens for direct downward illumination
Multiple mounting options including surface, recessed, wall, and suspended
Optional recessed and wall mounting kits available
Adjustable multi-color temperature (MCT) with a switch inside the fixture
Custom colors available upon request

Electrical Specifications

Input Voltage: 120-277VAC 50/60Hz
Power Consumption: 20W
High Power Factor: >0.95
Total Harmonic Distortion: ≤ 20%

Mechanical Specifications

Modern low-profile design with aluminum housing and matte white finish
IP54 rated, suitable for demanding environments
Adjustable suspension brackets provided
Operating Temperature Range: -13°F to 104°F
Flexible connections with T/L/X joints on both ends

Lighting Specifications

Dimmable: 0~10V dimming capability
Total Lumens: 2,197-2,390
Color Temperatures: 3000K, 3500K, 4000K, and 5000K
Multi-CCT selectable with an internal switch
Color Rendering Index (CRI): ≥ 80
Up light option available
Long lifespan with 50,000 hours rated life
Wide beam angle: 104.8° horizontal, 100.5° vertical

Ideal Applications

Perfect for offices, hotels, corridors, libraries, meeting rooms, and conference halls
Suitable for a wide range of indoor applications

Resources and Downloads

20 Watt SCX Superior Architectural Spec Sheet

Westgate Resources and Downloads

Westgate Document 1

Details

CRI:	80
Color Temperature:	3000K\|4000K\|5000K\|3500K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP54
Item Height (Inch):	3.35
Item Length (Inch):	10.5
Item Weight (LBS):	3.1
Item Width (Inch):	3.35
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Opal Polycarbonate
Light Source:	LED
Lumen Output:	2200\|2197\|2390
Operating Temperature:	-13°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Voltage:	120-277V
Wattage:	20W
