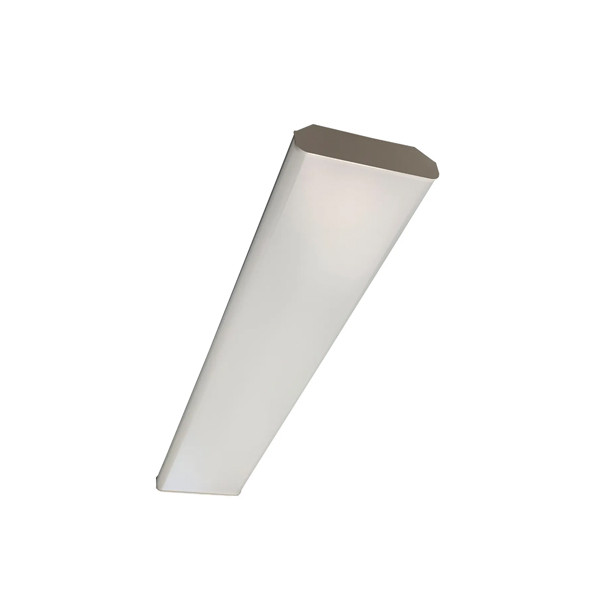

24-inch linear LED wraparound architectural diffused lens, 23 watts, 3,073-3,125 lumens, available in 4000K or 5000K color temperature (CCT), up to 100,000 hours rated life, 5 years limited warranty.
The Halco Linear Wrap Series Luminaire is a cost-effective solution for replacing pre-existing fluorescent fixtures. These maintenance-free, stainless steel LED wraps are exceptionally efficient and can be either surface or chain mounted. The durable acrylic lenses are offered in either prismatic or diffused for enhanced optical performance and visual comfort.
- Cost Efficient Replacement for Fluorescent Fixtures
- Acrylic Lens Available in Two Designs
- Architectural Diffused Lens and Traditional Prismatic Lens options
- 2ft and 4ft Footprint
- Multiple Lumen Packages
- Long Lifetime Rating
APPLICATIONS
- Commercial
- Industrial
- Retail
- Educational Facilities
- Stairwell
- Task Lighting
- Parking Garage
PERFORMANCE
- Driver efficiency >85%
- CRI >80.
- L70 Lumen Maintenance > 50,000 hours (traditional) and > 100,000 hours (architectural)
- -5 year limited warranty
- 0-10V Dimming Standard, dimmable down to 10%
- Universal 120-277VAC
CONSTRUCTION
- Die-formed 22 gauge steel
- Acrylic Lens offered in diffused or prismatic
- Aluminum reflector with high-reflectance powder coat
CERTIFICATION
- UL Listed
- DLC Listed for Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires
- R0Hs Compliant
- Damp Location
APPLICATION
- Commercial
- Industrial
- Retail
- Utility
- Stairwell
- Task Lighting
- Parking Garage
RESOURCES AND DOWNLOADS
| SKU | HLT-LWA-D23U2 |
|---|---|
| Weight | 18.00 LBS |
| Light Source | LED |
| Fixture Size | 24" Linear |
| Driver Type | 120-277VAC |
| Lumen Output | 3,073lm-3,125lm |
| L70 Expected Life (hours) | 100,000hrs |
| Luminaire Efficacy Rating (LER) | 134lm/W-136lm/W |
| Color Rendering Index (CRI) | >80, R9 >0 |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 23W |
