Westgate Manufacturing LTPV Series: Versatile Industrial Lighting Solution
The Westgate Manufacturing LTPV Series is the ultimate modular linear vapor tight fixture engineered for high-demand industrial environments. At 2 feet in length, this fixture is built with advanced durability and flexibility features that ensure long-lasting performance. Its IP66 rating provides superior protection against both water and dust, making it an ideal solution for a variety of challenging setting.
Key Features and Benefits
- Multi-Color Temperature & Multi-Power Selectable: Choose from 3 different color temperatures (3000K, 4000K, 5000K) and power wattages (10W, 15W, 18W) to suit your specific lighting needs.
- 0~10V Dimming Capabilities: Fully dimmable to create the perfect lighting atmosphere.
- High Efficacy: With an impressive 130 lumens per watt, this fixture ensures maximum energy efficiency.
- Long Lifespan and Warranty: Enjoy peace of mind with a 5-year warranty and a robust build that promises longevity.
- Vandal-Proof Construction: Features a polycarbonate lens and housing that are resistant to vandalism and impacts.
- IP66 Rating: Totally protected against dust and high-pressure water jets, suitable for wet locations.
- Easy Installation: Quick and tool-free installation process allows for hassle-free setup.
- Compatibility: Works seamlessly with optional accessories and sensors for enhanced functionality.
Technical Specifications
- Voltage: 120-277V AC 50/60Hz
- Wattage: Selectable 10W/15W/18W
- Total Lumens: Up to 2340LM
- Color Temperatures: Selectable 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 or greater
- Operating Temperature: -22°F to 104°F
Ideal for a Wide Range of Applications
This fixture is perfect for industrial applications such as factories, production areas, parking lots, corridors, hallways, warehouses, and storage rooms. It is also suitable for offices, retail stores, showrooms, residential spaces, restaurants, bakeries, food facilities, gyms, pool areas, and any setting requiring NSF certified or high-end architectural designer grade fixtures.
Resources and Downloads

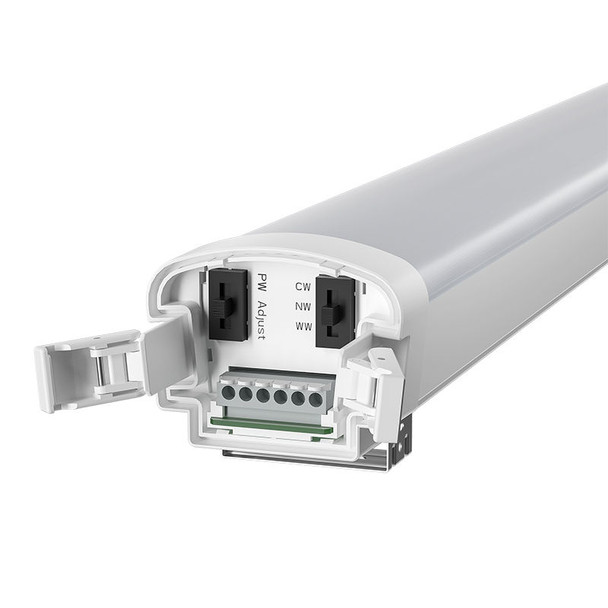

2' Quick Connect Modular Linear Vapor Light, 10W-18W MCTP Spec Sheet
SKU | WM-LTPV-2FT-18W-MCTP-D |
---|---|
Weight | 3.00 LBS |
Total Input Watts | 10W |
Total Input Watts | 15W |
Total Input Watts | 18W |
Lumen Output | 130/W |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Voltage | 120-277Vac |
Color Rendering Index (CRI) | >80 |
L70 Expected Life (hours) | 50,000 |
Listings and Ratings | ETL, DLC |
