Name: 4FT Vaport Tight Selectable 20/28/35W 30/40/50K IP66 Nsf
Brand: Westgate Manufacturing
SKU: WM-LVTE-4FT-20-35W-MCTP
Price: 87.74 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

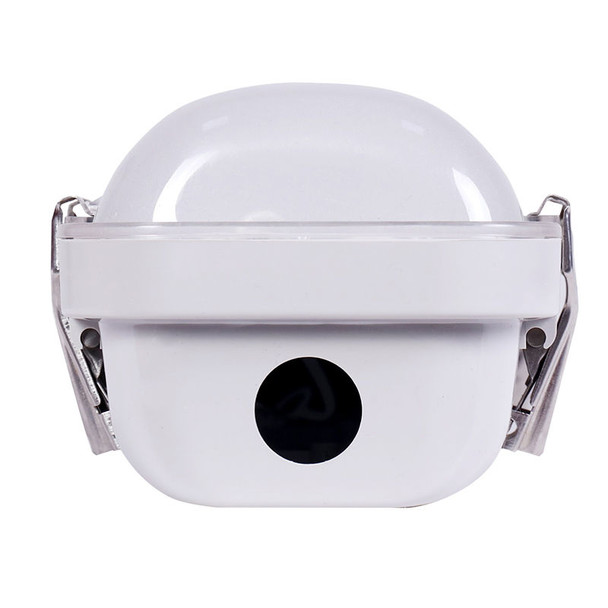

Westgate LVTE Series 4FT LED Linear Vapor Light - Selectable Wattage & CCT

The Westgate Manufacturing LVTE Series LED Linear Vapor Light WP-LVTE-4FT-20-35W-MCTP offers exceptional versatility and durability. With selectable color temperatures and wattages, this robust lighting solution is perfect for various challenging environments.

Key Features and Benefits

Multi-CCT & Power selectable switch inside fixture
High efficacy at 140LM/W for energy savings
0-10V dimming capability for enhanced control
Vandal-proof polycarbonate lens and housing for added durability
5-year warranty and an impressive 50,000-hour lifetime
IP66 rating, ensuring suitability for wet locations
NSF/ANSI 2:2015 certification for splash zones in food equipment

Technical Specifications

Voltage: 120-277VAC 50/60Hz
Wattage options: 20W, 28W, 35W
Total Lumens: 2800LM, 3920LM, 4900LM
Color Temperatures: 3500K, 4000K, 5000K
Color Rendering Index: CRI ≥ 80
Operating Temperature: -25.6°F to 104°F

Common Uses

This LED linear vapor light is suited for a variety of applications such as restaurants, bakeries, food facilities, gyms, pool areas, workshops, garages, canopies, parking garages, cold storage facilities, food processing facilities, farmyards, and other harsh, humid, dusty, and wet environments. It’s especially beneficial for locations requiring NSF certification or high-end architectural grade fixtures.

RESOURCES AND DOWNLOADS

LSN Series LED Narrow Strip Light Spec Sheet

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|ETL Listed
Country of Origin:	CAMBODIA
Dimming Type:	0-10V
Efficacy:	140LM/W
Finish / Color:	White\|Gray
Housing Material:	Polycarbonate
IP Rating:	IP66
Item Height (Inch):	3.4
Item Length (Inch):	46.65
Item Weight (LBS):	4.18
Item Width (Inch):	4.17
L70 Expected Life (hours):	50,000hr
LED Type:	SEOUL 3525
Lens Material:	PC
Lumen Output:	5054\|2800\|3920\|4900
Operating Temperature:	一25.6°F to 104°F
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|NSF Rated
THD:	<20%
Voltage:	120-277V
Wattage:	20W\|28W\|35W
