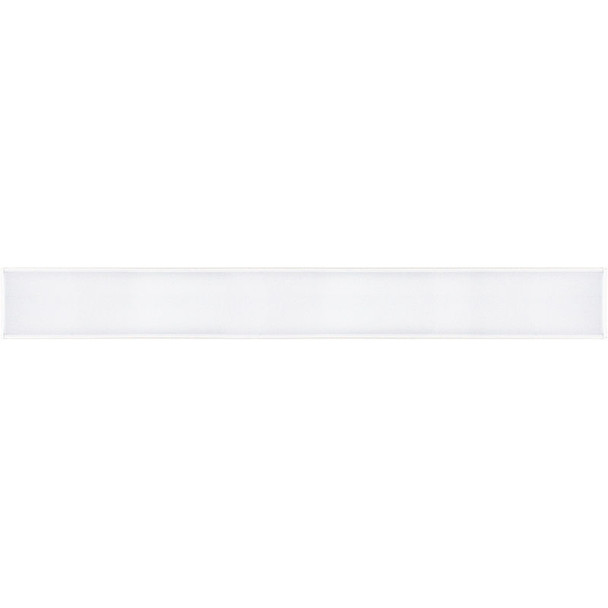

SCX4 Series 3ft LED Seamless Linkable Linear Lighting System

The SCX4 series from RelightDepot.com offers a state-of-the-art 3ft LED seamless linkable linear lighting system that consumes 30 watts for an impressive 3,300 lumens. It features an adjustable CCT range of 3000K, 3500K, 4000K, and 5000K, ensuring optimum lighting for various environments. With a lifespan of up to 50,000 hours and a 5-year limited warranty, this fixture is as reliable as it is versatile.

Features

• LED Superior Architectural Lights
• Seamless Linkable Linear Lighting System
• Opal Polycarbonate Lens for Direct (DOWN) Lighting
• Flexible mounting options including suspended, surface, or recessed
• Optional Louver Version Lens Available
• Selectable Multi Color Temperature (MCT) via switch inside the fixture

Electrical Specifications

• Voltage: 120-277VAC 50/60Hz
• Power: 30W
• Power Factor: >0.95
• Efficacy: 104/117/106/107 LPW
• Total Harmonic Distortion: ≤ 20%

Mechanical Details

• Low-profile modern design
• Durable aluminum housing with matte white finish
• Snap-in opal polycarbonate lens

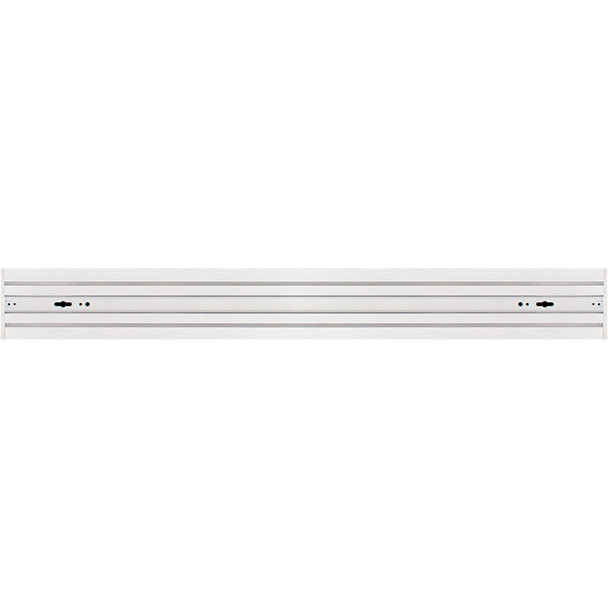

• Multiple connection options via T/L/X joints on both ends
• Mounting options: surface, suspended, wall, recessed
• IP Rating: IP54
• Operating Temperature: -13°F to 104°F
• Adjustable suspension brackets

Lighting Specifications

• Dimmable: 0-10V
• Total Lumens: 3387M/3638LM/3566LM/3604LM
• Selectable Color Temperatures: 3000K/3500K/4000K/5000K
• CRI: ≥80
• Up Light Option Available
• Beam Angle: 104.8°(H) x 100.5°(V)

Applications

• Ideal for storage rooms, offices, conference rooms, retail spaces, reception areas, hallways, educational facilities, hotels, and restaurants
• Suitable for any indoor applications
