3Ft. 30 Watt Seamless LED Linkable Linear Lighting System - CCT Adjustable

By Westgate Manufacturing

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

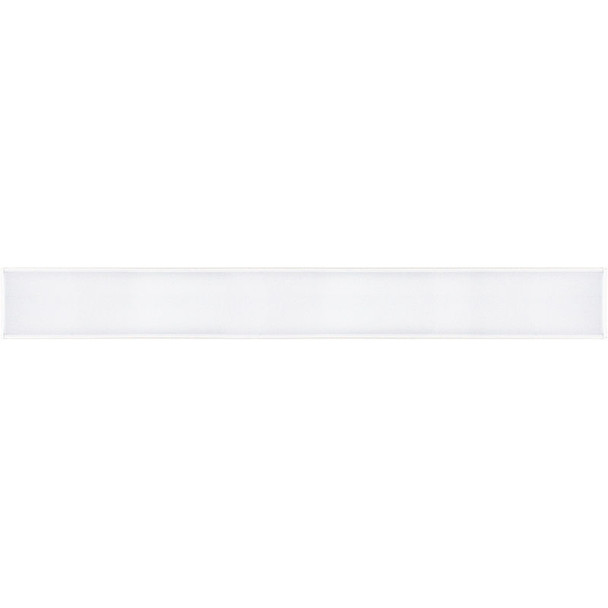

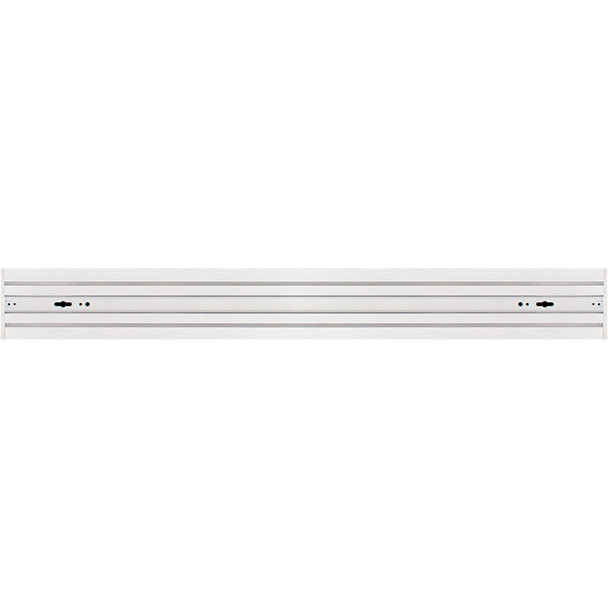

3Ft. 30 Watt Seamless LED Linkable Linear Lighting System - CCT Adjustable

$156.74
MSRP: $176.78
You save $ 20.04 (11%)
  • SKU: WM-SCX4-3FT-30W-MCT4-D
  • UPC: 845060057096
  • MPN: SCX4-3FT-30W-MCT4-D

Quick Overview

3Ft. 30 Watt Seamless LED Linkable Linear Lighting System - CCT Adjustable (wattage: 30W; lumens: 3300LM; CCT: 30K/35K/40K/50K; voltage: 120-277VAC; finish: White)

UL Listed
WARRANTY 5 YEARS
IP54
Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left: 974
Free shipping on this item
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

SCX4 Series 3ft LED Seamless Linkable Linear Lighting System

The SCX4 series from RelightDepot.com offers a state-of-the-art 3ft LED seamless linkable linear lighting system that consumes 30 watts for an impressive 3,300 lumens. It features an adjustable CCT range of 3000K, 3500K, 4000K, and 5000K, ensuring optimum lighting for various environments. With a lifespan of up to 50,000 hours and a 5-year limited warranty, this fixture is as reliable as it is versatile.

Features

  • LED Superior Architectural Lights
  • Seamless Linkable Linear Lighting System
  • Opal Polycarbonate Lens for Direct (DOWN) Lighting
  • Flexible mounting options including suspended, surface, or recessed
  • Optional Louver Version Lens Available
  • Selectable Multi Color Temperature (MCT) via switch inside the fixture

Electrical Specifications

  • Voltage: 120-277VAC 50/60Hz
  • Power: 30W
  • Power Factor: >0.95
  • Efficacy: 104/117/106/107 LPW
  • Total Harmonic Distortion: ≤ 20%

Mechanical Details

  • Low-profile modern design
  • Durable aluminum housing with matte white finish
  • Snap-in opal polycarbonate lens
  • Multiple connection options via T/L/X joints on both ends
  • Mounting options: surface, suspended, wall, recessed
  • IP Rating: IP54
  • Operating Temperature: -13°F to 104°F
  • Adjustable suspension brackets

Lighting Specifications

  • Dimmable: 0-10V
  • Total Lumens: 3387M/3638LM/3566LM/3604LM
  • Selectable Color Temperatures: 3000K/3500K/4000K/5000K
  • CRI: ≥80
  • Up Light Option Available
  • Beam Angle: 104.8°(H) x 100.5°(V)

Applications

  • Ideal for storage rooms, offices, conference rooms, retail spaces, reception areas, hallways, educational facilities, hotels, and restaurants
  • Suitable for any indoor applications
