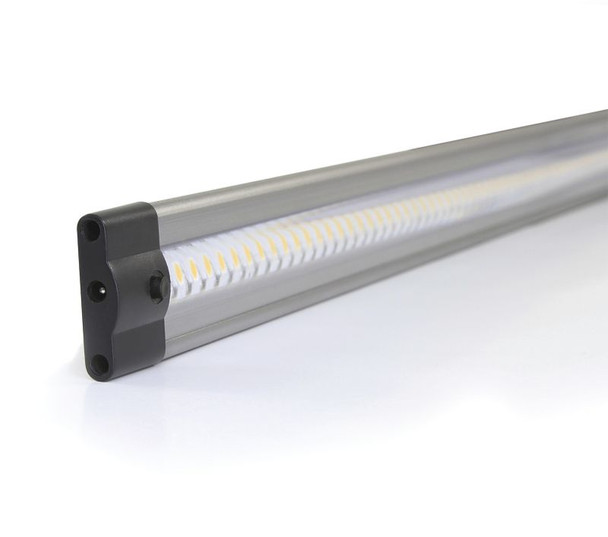

40-inch LED undercabinet, 24 volt, 11 watts, 820-880 lumens, available in 3000K or 6000K color temperature (CCT), suitable for interior applications only, 5 years warranty.
Very low profile, easy to install, cool to the touch
High brightness with excellent color rendition and years of maintenance free operation.
Wide selection of mounting hardware, accessories and LED drivers
ELECTRICAL SPECIFICATIONS
- Highly efficient SMD 3528 chip technology
- Integral switch, push on - push off
- Working voltage: 24V DC - (driver required)
- Electronic or hard wired magnetic drivers available
MOUNTING
- Mounting hardware and coupler included
- Polycarbonate end caps with universal feed thru mono-pin receptacle
WARRANTY
- 5 year warranty
LIGHTING SPECIFICATIONS
- Color temperatures: warm white (3000K), cool white (6000K)
- Suitable for interior applications only
- Ambient temperature rating: –20°C (4°F) to +40°C (104°F)
- Max run 48w 190“
- Dimmable using magnetic low voltage transformer:
1. Hardwire application will require “magnetic low voltage dimmable driver DC” For WestGate UCM Series-use compatible “magnetic low voltage wall dimmer”
2. The touch dimmer or the “in line dimmer” can only be used with the in line transformer
HOUSING SPECIFICATIONS
- Ultra-low profile - only 1/4” deep
- Extruded aluminum housing with white powder coat finish
- Smooth white acrylic lens (.125” thickness). No lamp imaging
CERTIFICATIONS
- UL-listed
RESOURCES AND DOWNLOADS
| SKU | WM-UC40 |
|---|---|
| Weight | 34.00 LBS |
| Light Source | LED |
| Fixture Size | 40" Linear |
| Driver Type | 24V DC |
| Lumen Output | 820lm-880lm |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 6000K |
| Total Input Watts | 11W |
| Lumen Output | 820 |
| Voltage | 24VDC |
| Listings and Ratings | UL |
| Lumen Output | 880 |
