Description

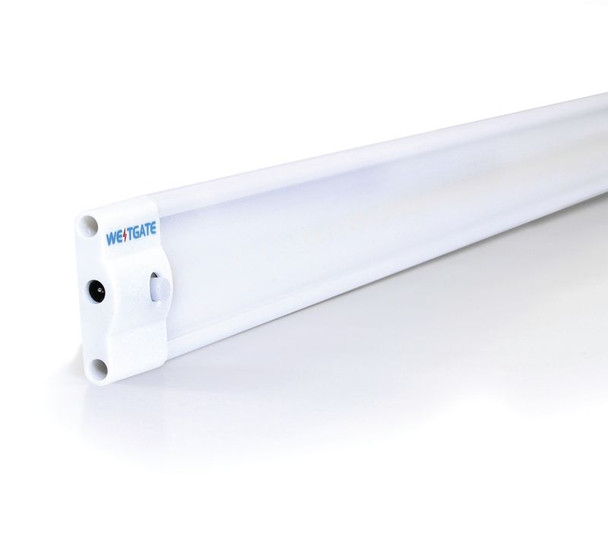

40-Inch LED Undercabinet Light - WM-UCW40

Illuminate your space with the highly efficient, ultra-low profile 40-inch LED undercabinet light. This 12-volt, 11-watt lighting solution offers exceptional brightness (820-880 lumens) and comes in two color temperature options - warm white (3000K) and cool white (6000K). Designed for interior applications, it guarantees maintenance-free operation for years with a 5-year warranty included.

Electrical Specifications

Utilizes advanced SMD 3528 chip technology
Integral push on/off switch
Operates at 24V DC (driver required)
Compatible with plug-in electronic or hardwired magnetic drivers

Mounting

Includes mounting hardware and coupler
Features polycarbonate caps with universal feed-thru mono-pin receptacle

Warranty

Comes with a five-year warranty

Lighting Specifications

Available in color temperatures: warm white (3000K), cool white (6000K)
Designed for indoor use only
Ambient temperature rating from –20°C (4°F) to +40°C (104°F)
Maximum continuous run: 24w (5”)
Dimmable with magnetic low voltage transformer; requires compatible drivers and dimmers

Housing Specifications

Ultra-low profile, only 1/4” deep
Constructed with extruded aluminum housing with a white powder coat finish
Smooth white acrylic lens (0.125” thickness), no lamp imaging

Certifications

UL-listed for safety and quality assurance

Resources and Downloads

40" LED 11W Undercabinet, 12V Spec Sheet

Westgate Resources and Downloads

Details

Color Temperature:	3000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Driver Type:	24VDC
Finish / Color:	White
Fixture Size:	40" Linear
Housing Material:	Aluminum
Item Height (Inch):	1.25
Item Length (Inch):	40
Item Weight (LBS):	1.24
Item Width (Inch):	1.25
LED Type:	SMD Chip 3528
Lens Material:	PC Lens
Light Source:	LED
Lumen Output:	820\|880
Operating Temperature:	-4°F to 104°F
Ships From:	CA
Voltage:	12V
Wattage:	11W
