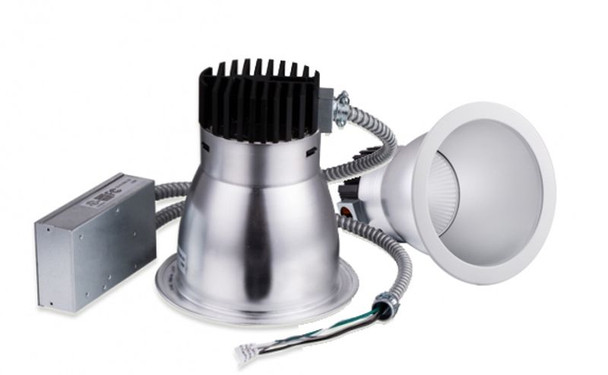

40 Watt LED CRL Engine & Driver Unit – Premium Performance and Longevity
The LED CRL engine & driver unit, SKU: WM-CRL-EGN-40W, is an elite lighting solution designed for efficiency and durability. Operating at 40 watts, it produces between 3,346 to 3,447 lumens with available color temperatures (CCT) of 3000K, 4000K, and 5000K. This unit promises a lifespan of up to 50,000 hours and includes a 5-year warranty, making it an investment in long-term performance.
Electrical Specifications
- Input Wattage: 18W
- Input Voltage: 100-277VAC 50/60Hz
- Power Factor: >0.9
- Efficacy: 83.83LM/W~86.4LM/W
Housing Specifications
- Operating Temperature: Below 113°F
- Lifespan: 50,000 Hours
- IP Rating: Damp Rated
Certifications
- UL Certified
Lighting Specifications
- Dimming: 0~10V Dimmable
- LED Type/Brand: CREE COB
- Total Lumens: 3346LM, 3387LM, and 3447LM
- Color Temperature Options: 3000K, 4000K, 5000K
- Color Rendering Index (CRI): >80
- Beam Angle: 40°
Warranty
- 5 Years
Resources and Downloads
| SKU | WM-CRL-EGN-40W |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 100-277VAC 50/60Hz |
| Lumen Output | 3,346-3,447lm |
| Color Rendering Index (CRI) | >80 |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 40W |
| Lumen Output | 3447 |
| Voltage | 120-277V |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL |
