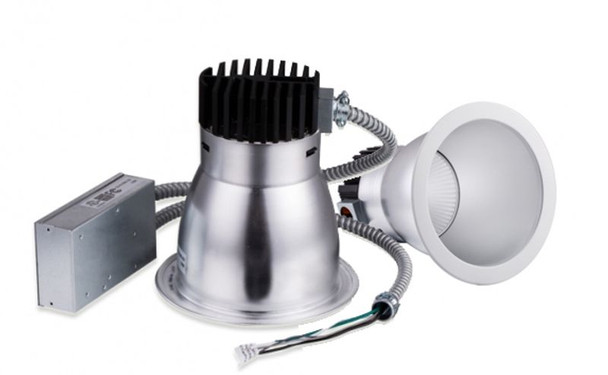

18 Watt LED CRL Engine & Driver Unit

Introducing the advanced 18 Watt LED CRL Engine and Driver Unit. This powerful and efficient unit offers superior lighting performance with a remarkable lifespan of up to 50,000 hours, making it an ideal choice for a variety of applications. Experience bright, vibrant lighting with up to 1,639 lumens and a choice of 3000K, 4000K, or 5000K color temperatures.

Product Features

Excellent light output with 1,639 lumens
Choice of color temperatures: 3000K, or 5000K
Impressive 50,000-hour lifespan
5-year warranty included

Electrical Specifications

Input Wattage: 18W
Input Voltage: 100-277VAC 50/60Hz
Power Factor: >0.9
Efficacy: 89.38LM/W ~ 93.18LM/W

Housing Specifications

Operating Temperature: Below 113°F
Lifespan: 50,000 Hours
IP Rating: Damp Rated

Certifications

UL Certified

Lighting Specifications

Dimming: 0~10V Dimmable
LED Type/Brand: CREE COB
Total Lumens: 1606LM, 1624LM, and 1639LM
Color Rendering Index:>80
Beam Angle: 40°

Warranty

5 years

RESOURCES AND DOWNLOADS

18 Watt LED CRL Engine & Driver Unit Spec Sheet

Westgate Resources and Downloads

Details

CRI:	80
Color Temperature:	3000K\|5000K\|4000K
Compliance & Warranty:	Damp Location\|5 Year Warranty\|UL Listed
Country of Origin:	DDP
Dimming Type:	0-10V
Driver Type:	100-277V
Fixture Size:	Other
Housing Material:	Aluminum
Item Height (Inch):	11.2
Item Length (Inch):	6.1
Item Weight (LBS):	0.98
Item Width (Inch):	7.2
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	PC Lens
Light Source:	LED
Lumen Output:	1639
Operating Temperature:	113°
Power Factor:	>0.90
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Voltage:	120-277V
Wattage:	18W
