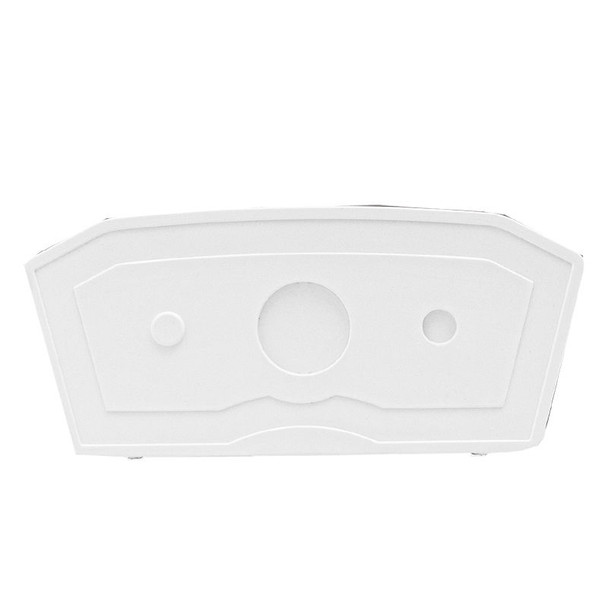

4ft Economy LED Wrap-Around Fixture - 40 Watts, 3200 Lumens
Experience superior lighting with our 4ft economy LED wrap-around fixture, boasting 40 watts and a remarkable 3200 lumens. This fixture is perfect for a range of applications, from industrial and commercial to residential settings.
Key Features
- Housing: Die-formed cold rolled steel with a durable powder-coated white finish for longevity.
- Installation: Simple ceiling-mounted setup ensures ease of use and steady illumination.
- Lens: Built with a robust polycarbonate lens to maximize light diffusion.
- MCT: Multi Color Temperature; choose between 3000K, 4000K, and 5000K for the perfect ambiance.
Electrical Specifications
- Voltage: 120-277V AC 60Hz, adaptable to various electrical systems.
- Wattage: Energy-efficient 40 watts.
- Power Factor: Greater than 0.99 for optimal energy performance.
- Efficacy: Achieves an impressive 80 lumens per watt.
Mechanical Details
- Finish: Pristine white.
- Housing: Sturdy die-formed cold rolled steel with powder-coated finish.
- Installation: Designed for easy ceiling mounting.
- Operating Temperature: Functions efficiently between -22°F~104°F.
- Warranty: Comes with a 5-year limited warranty for peace of mind.
Lighting Performance
- Dimming: Dual function dimming (Triac at 120V & 0-10V at 120-277V).
- Lens: Polycarbonate lens for enhanced light quality.
- Total Lumens: Delivers a bright 3200 lumens.
- Color Temperatures: Selectable from 3000K, 4000K, 5000K.
- Color Rendering Index: CRI ≥ 82 for true color representation.
- Life Span: Long-lasting with up to 50,000 hours of use.
Ideal Applications
- Perfect for a variety of industrial, commercial, and residential applications.
RESOURCES AND DOWNLOADS
SKU | WM-WAE-4FT-MCT-DD |
---|---|
Weight | 5.00 LBS |
Light Source | LED |
Fixture Size | 4Ft. |
Driver Type | 120-277V AC 60Hz |
Lumen Output | 3,200 |
Luminaire Efficacy Rating (LER) | 80 LPW |
L70 Expected Life (hours) | 50,000 |
Color Rendering Index (CRI) | >82 |
Color Temperature (CCT) | MCT |
Total Input Watts | 40W |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Voltage | 120-277V |
Listings and Ratings | UL |
