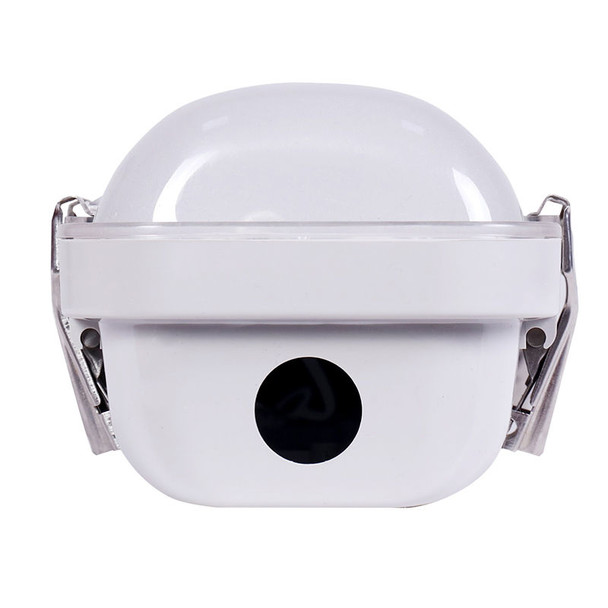

The Ultimate LED Linear Vapor Light for Versatile Applications

The Westgate Manufacturing LVTE Series LED Linear Vapor Light stands out as an exceptional lighting solution for challenging environments. Its versatility in color temperature and wattage adjustment makes it suitable for a broad range of applications.

Key Features and Benefits

• Multi-CCT Selectable Switch: Allows choice of 3500K, 4000K, or 5000K color temperatures.
• Adjustable Wattage Options: Choose from 30W, 38W, or 46W, delivering 4200LM, 5320LM, and 6400LM respectively.
• High Efficacy: Achieves 140LM/W, providing excellent lumens per watt performance.
• Dimmable Functionality: 0~10V dimming capability for customizable lighting levels.
• Durable Construction: Vandal-proof and impact-resistant polycarbonate.
• Longevity and Warranty: Rated life of 50,000 hours and accompanied by a 5-year warranty.
• IP66 Rated: Built for wet locations and NSF/ANSI 2:2015 certified for food equipment splash zones.

Technical Specifications

• Wattage: 30W/38W/46W
• Voltage: 120-277VAC, 50/60Hz
• LED SMD Type: 2835
• Color Rendering Index (CRI): ≥ 80
• Operating Temperature: -25.6°F to 104°F

Ideal Applications

This LED Vapor Light is suitable for a variety of settings including restaurants, bakeries, food facilities, gyms, pool areas, workshops, garages, canopies, parking garages, and more. It excels in harsh, humid, dusty, and wet environments, where certified lighting or high-end architectural fixtures are required.

Resources and Downloads

For more details, check out the 4' LED Linear Vapor Light, 30W-46W MCT Spec Sheet.
