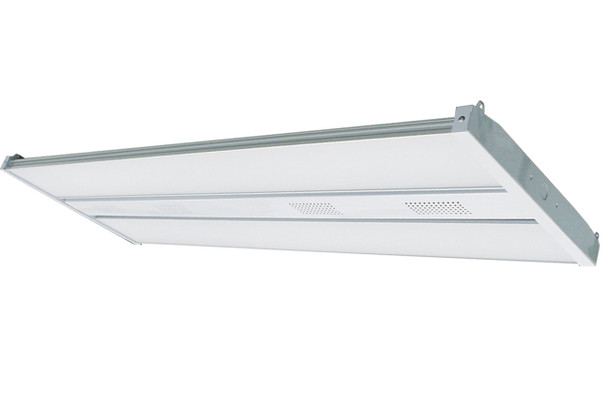

4th generation 4ft. linear LED high bay, 410 watts, 53,300 lumens, available in 5000K color temperature (CCT), dimmable, with V hooks, up to 50,000 hours rated life, 5 years limited warranty.
Ideal for replacement of conventional lighting systems such as HID and fluorescent. Applications include manufacturing warehousing and other large indoor spaces with mounting heights from 10ft. to 40ft. the fixture can be surface mounted also.
FEATURES
- High quality LED Chips to provide high efficiency, heat dissipation
- Stability, and lumen maintenance.
- Polycarbonate lens, high flame retardant point
- 50,000 hours rated life
- 5-Year Warranty
LIGHTING
- Dimming: 0~10V dimmable
- Lens: Polycarbonate Lens
- Total lumens: 53300LM (Per industry standards, Lumens are reported without frosted lens)
- Color temperatures: 5000K
- Color rendering index: >80
- Wide Beam angle LED SMD type: Edison 2835
MECHANICAL
- Surge protector
- Steel housing
- Steel Thickness: 24 Gauge
- V-hooks
- Unprecended quality.
- Aluminum LED board
- Operating temperature: -4°F ~ 131°F
- Suitable for damp locations
APPLICATIONS
- Warehouse
- Manufacturing Plants Distribution Centers
- Industrial Commercial
- Grocery Stores Gymnasiums
- Cold Storage
RESOURCES AND DOWNLOADS
| SKU | WM-LLHB4-410W-50K-D |
|---|---|
| Weight | 30.00 LBS |
| Light Source | LED |
| Fixture Size | 4' Linear |
| Color Rendering Index (CRI) | >80 |
| Driver Type | 120-277VAC |
| Lumen Output | 53,300 |
| Luminaire Efficacy Rating (LER) | 130lm/w |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 410W |
