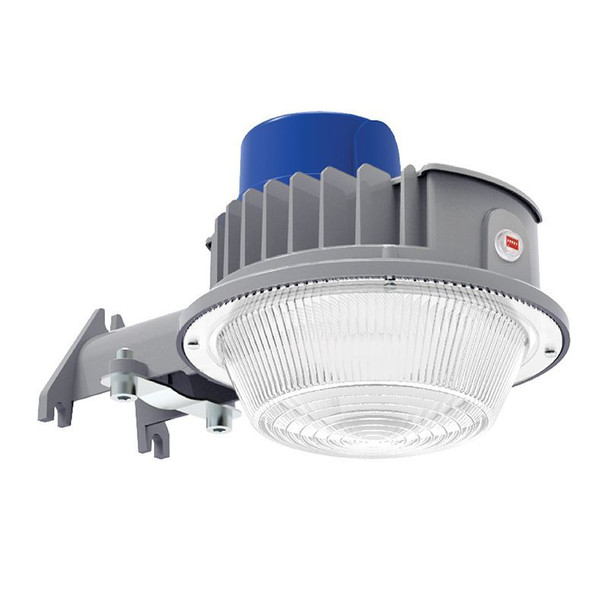

High-Performance Dusk to Dawn Barn Light for Outdoor Illumination
The Dusk to Dawn Barn Light is an optimal solution for efficient lighting across various outdoor settings. Designed with flexibility in mind, this barn light offers power selectability of 72W, 96W, and 120W, delivering between 9,360 to 15,600 lumens, perfect for brightening up any area.
Exceptional Features
- Housing: Robust die-cast aluminum ensures durability.
- Lens: Made from high light transmittance polycarbonate that is also anti-UV and fire resistant.
- Versatile Mounting: Suitable for both wall and pole mount applications, making it ideal for various outdoor uses.
- Warranty: Comes with an extensive 7-year warranty.
Advanced Electrical Specifications
- Voltage: 120-277V AC 60Hz
- Wattage: Adjustable wattage of 72W, 96W, or 120W
- Power Factor: Greater than 0.90
- Efficacy: 130 lumens per watt for high efficiency
- Total Harmonic Distortion (THD): Less than 20%
Mechanical Durability
- Build: Aluminum housing with gray powder coating
- Mounting Options: Capable of being mounted on walls or poles
- Weather Resistant: IP65 rating makes it suitable for wet locations
- Operating Temperature: Functional in extreme temperatures ranging from -40°F to 113°F
Superior Lighting Quality
- Dimming: 0-10V dimming capability
- Lumens: Provides 9,360LM, 12,480LM, or 15,600LM depending on wattage
- Adjustable CCT: Switchable color temperatures of 3000K, 4000K, and 5000K
- Color Rendering Index (CRI): 80 or higher for true color visibility
- Beam Angle: 120 degrees, suitable for wide area coverage
- Lifespan: Rated life of up to 70,000 hours
Ideal Applications
- Perfect for farms, barns, and storage sheds
- Efficiently lights up entryways, pathways, and industrial yards
- An excellent choice for security lighting and building perimeters
- Suitable for general area lighting needs
Resources and Downloads
Barn/Area Light, 72-120 Watt Power & CCT Adjustable Spec Sheet
| SKU | WM-LRX-72-120W-MCTP-TL |
|---|---|
| Weight | 7.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Lumen Output | 9,360lm|15,600lm |
| L70 Expected Life (hours) | 70,000hrs |
| Luminaire Efficacy Rating (LER) | 130LPW |
| Color Rendering Index (CRI) | >80 |
| Driver Type | 120-277V AC 60Hz |
| Color Temperature (CCT) | MCT |
| Total Input Watts | 72W/96W/120W |
| Total Input Watts | 72W |
| Total Input Watts | 96W |
| Total Input Watts | 120W |
| Lumen Output | 130/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120-277V |
| Color Rendering Index (CRI) | >70 |
| L70 Expected Life (hours) | 70,000 |
| Listings and Ratings | UL |
