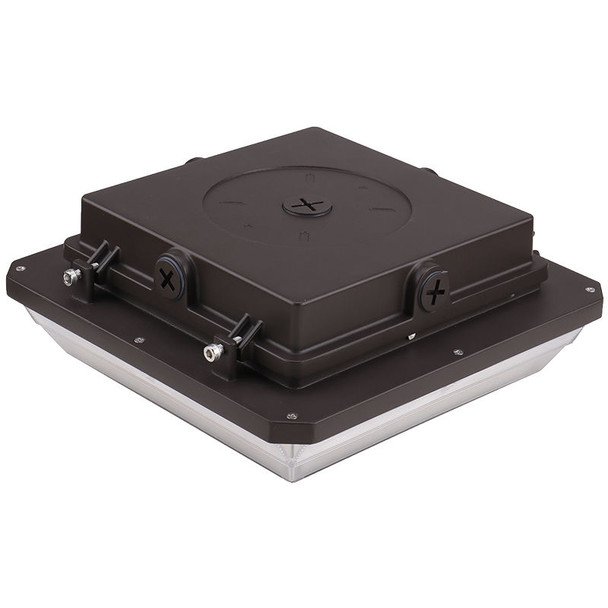

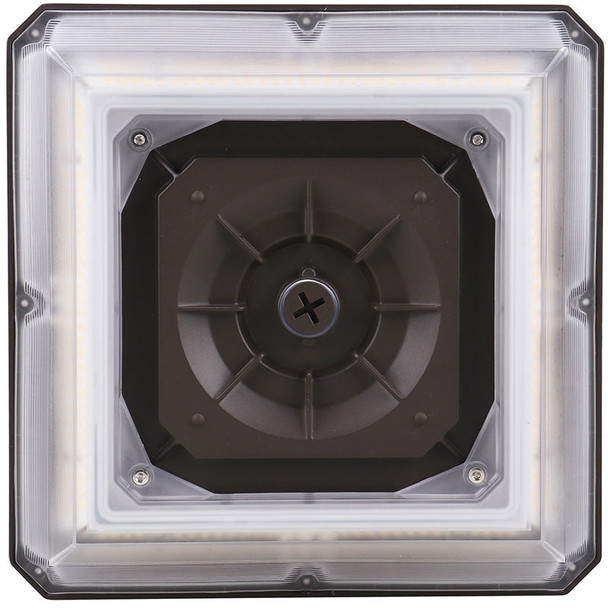

Overview of the CAX Series Canopy Light

The CAX Series by Westgate Manufacturing is a versatile and durable outdoor lighting solution designed for a variety of applications. Crafted with a die-cast aluminum housing and prismatic polycarbonate lens, this canopy light ensures longevity and excellent light distribution even in harsh conditions.

Key Features and Benefits

• Durable Construction: Made with die-cast aluminum housing and a prismatic polycarbonate lens for resilience.
• Adjustable Wattage: Choose from 40W, 60W, and 75W settings to suit your lighting needs.
• Selectable Color Temperature: Customizable from 3000K to 4000K and 5000K for different lighting atmospheres.
• High Lumen Output: Produces 5600LM, 8400LM, or 10500LM to ensure ample illumination.
• Longevity: Offers a long lifespan of 70,000 hours, reducing the need for frequent replacements.
• Dimmable: Features 0~10V dimmable capability for customized brightness.
• Weatherproof: IP65 rated for wet locations, making it ideal for outdoor use.
• Warranty: Comes with a 7-year warranty for peace of mind.

Technical Specifications

• Beam Angle: 150°
• Operating Temperature: -40°F to 131°F
• Power Factor: >0.90
• Color Rendering Index (CRI): >80
• Sensor-Ready: Equipped with a 3-pin socket pre-installed for easy sensor integration.

Common Applications

The CAX Series Canopy Light is perfect for indoor parking, commercial buildings, schools, warehouses, retail centers, apartment complexes, and garages. Its versatile features and robust build make it an ideal choice for a range of environments.
