Name: Canopy Garage Light, Angled Beam, Selectable 30/45/60W 30/40/50K 0-10V
Brand: Westgate Manufacturing
SKU: WM-CAX-30-60W-MCTP-SR
Price: 149.85 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

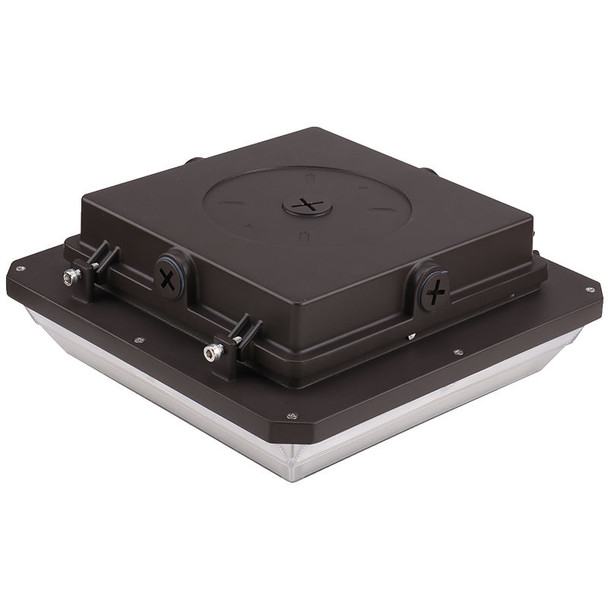

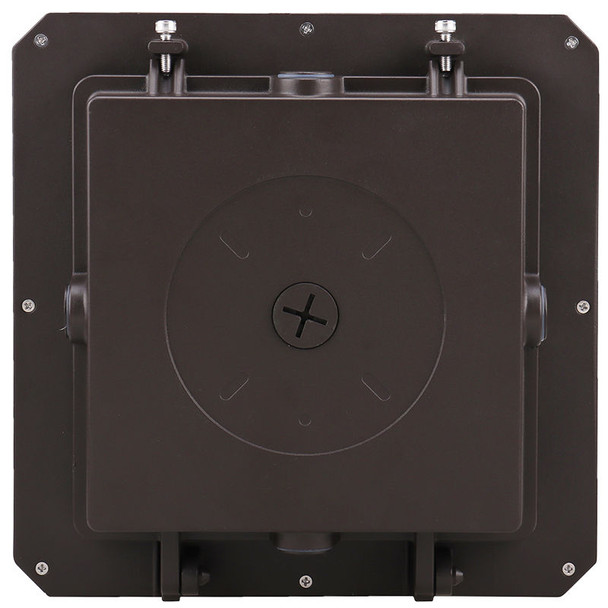

Westgate Manufacturing CAX Series Angled-Beam Garage Canopy Light

Introducing the Westgate Manufacturing CAX Series Angled-Beam Garage Canopy Light, a cutting-edge solution designed to meet all your outdoor lighting needs. Perfect for illuminating parking garages, commercial buildings, schools, and warehouses, this robust light fixture combines reliability and efficiency.

Key Features and Benefits

Durable Die-Cast Aluminum Housing: Engineered for longevity and toughness in demanding environments.
Prismatic Polycarbonate Lens: Designed to optimize LED light performance for maximum illumination.
Multi-Color Temperature and Power Selectability: Easily adjust between 3000K, 4000K, and 5000K color temperatures and select power levels of 30W, 45W, or 60W to suit diverse application needs.
High Efficiency: Provides an impressive 140 lumens per watt, delivering outstanding brightness while conserving energy.
Extended Lifespan: Expected lifespan of 70,000 hours ensures long-term use and reliability.
IP65 Rated: Fully protected against dust and water ingress, making it ideal for wet locations.
Sensor-Ready Design: Easily integrates with motion sensor accessories for enhanced functionality.
7-Year Warranty: Offering peace of mind with reliable performance backed by a comprehensive warranty.

Specifications

Wattage Options: 30W/45W/60W
Input Voltage: 120-277VAC
Total Lumens: 4200LM/6300LM/8400LM
Beam Angle: 150°
Operating Temperature Range: -40°F ~ 131°F

Common Uses

This versatile lighting solution is ideal for use in indoor parking lots, commercial buildings, educational institutions, warehouses, retail centers, apartment complexes, and more.

RESOURCES AND DOWNLOADS

Garage Canopy LED Light Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B3-U0-G3
Beam Angle:	135*45°\|135° x 45°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty
Country of Origin:	VIETNAM
Dimming Type:	0-10V
Efficacy:	140LM/W
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	3.7
Item Length (Inch):	9.56
Item Weight (LBS):	4.4
Item Width (Inch):	9.56
L70 Expected Life (hours):	50000hrs
Lumen Output:	8400\|4200\|6300
Operating Temperature:	Without Motion Sensor: -40℃ TO 50℃; With Motion Sensor: -30℃ TO 50℃
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	30W\|45W\|60W
