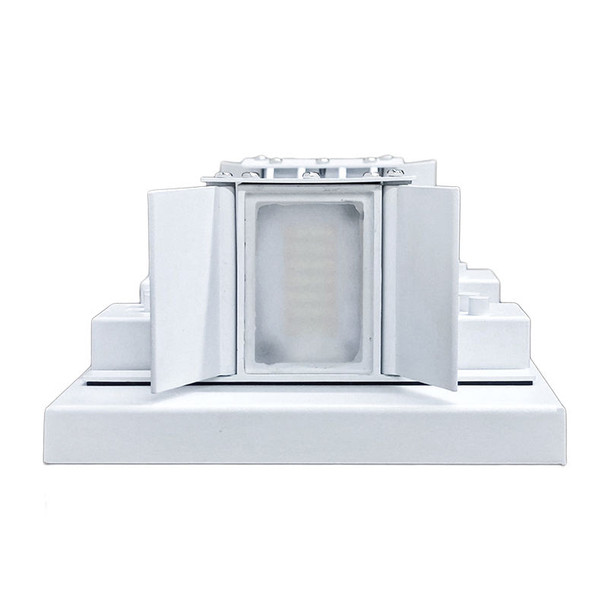

CREA Series Square Trim Model 56 – Versatile Outdoor Lighting Solution

The CREA Series Square Trim Model 56 is a versatile and efficient outdoor lighting solution designed for multiple applications including general site lighting, residential houses, and doorways. With selectable color temperatures and wattages, this robustly designed fixture offers flexibility and high performance for various lighting needs.

Key Features and Benefits

Selectable Color Temperatures: 3000K, 4000K, 5000K
Adjustable Wattages: 14W, 18W, 24W
Durable Die-Cast Aluminum Weatherproof Housing
Steel Backplate and Aluminum Trim, Available in Dark Bronze or White
High Efficacy of 80LM/W
Dual TRIAC and 0-10V Dimming Compatibility
Long Lifespan of 70,000 Hours
IP65 Rating, Suitable for Wet Locations
7-Year Warranty

Technical Specifications

Voltage: 120~277V AC
Power Factor: 0.95
Total Lumens: 1920LM Max
Color Rendering Index: >90
Beam Angle: 30°
Operating Temperature: -40°F to 104°F

Ideal For

This fixture is ideal for general site lighting, residential houses, and doorways.

RESOURCES AND DOWNLOADS

CREA Series Square Trim Model 56 Spec Sheet

Details

Beam Angle:	120°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|ETL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V\|Phase
Efficacy:	80LM/W
Finish / Color:	White
Housing Material:	Aluminum
L70 Expected Life (hours):	50,000hr
LED Type:	HONGLI 2835
Lens Material:	Glass
Lumen Output:	1920\|1120\|1440
Operating Temperature:	-40°F to 104°F
Power Factor:	>0.90
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	14W\|18W\|24W
