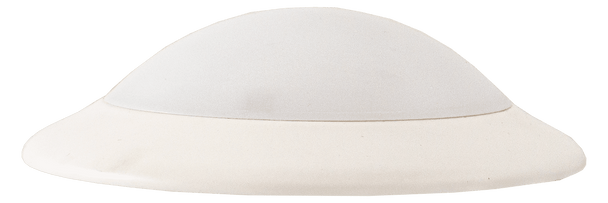

DLS Series 4-Inch Round Disc Light - CCT Adjustable

The DLS Series 4-inch Round Disc Lights offer an exceptionally versatile and energy-efficient lighting solution. Operating at only 9 watts but delivering an impressive 540 lumens, these lights boast adjustable color temperatures of 3000K, 4000K, and 5000K, making them perfect for various settings. They are built to last with a rated life of up to 50,000 hours and come with a 5-year limited warranty.

FEATURES

• Constructed from durable die-cast aluminum with a powder-coated finish
• Unique DOB (Driver On Board) LED technology enclosed in a clear PC cover for enhanced performance in wet locations
• Equipped with a closed-cell neoprene foam gasket for better sealing
• Multi CCT adjustable via a selectable switch on the LED board under the lens for customized lighting

ELECTRICAL SPECIFICATIONS

• Voltage: 120V AC
• High power factor: >0.90
• Wattage: 9W
• Efficacy: 70 lumens per watt

MECHANICAL DESIGN

• Sleek white finish

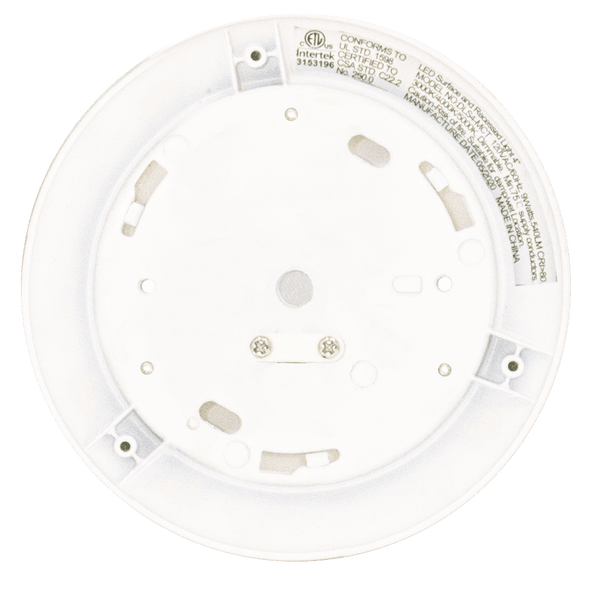

• Fits on 4-inch octagonal (4O) or 3-inch octagonal (3O) electrical boxes
• Recessed mounting kit included for both recessed and retrofit installations
• Operates efficiently in ambient temperatures up to 104°F
• 5-Year Warranty

LIGHTING PERFORMANCE

• White translucent acrylic lens
• Advanced DOB LED board enclosed in a clear PC cover for better wet location performance
• TRIAC Dimming compatible with standard TRIAC LED dimmers
• Total lumens: 630LM
• Adjustable color temperatures: 3000K, 4000K, 5000K
• High color rendering with CRI ≥ 90
• Rated life span: 50,000 hours

APPLICATION

These disc lights are designed to provide flexible lighting solutions for both retrofit and new construction applications. They are ideal for installation in closets, storage areas, attics, corridors, or as general lighting solutions for both residential and commercial environments.
