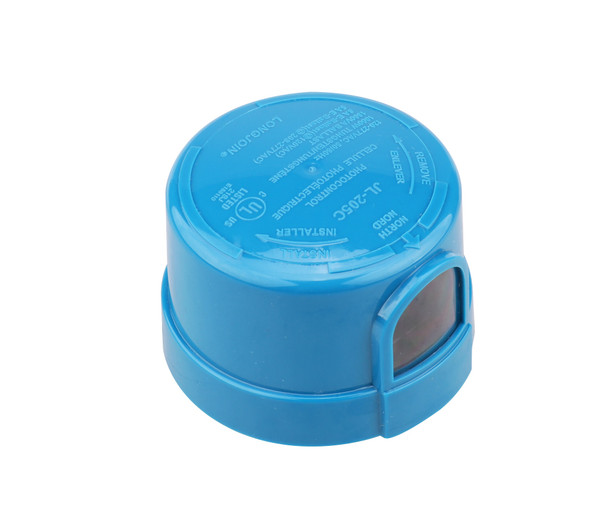

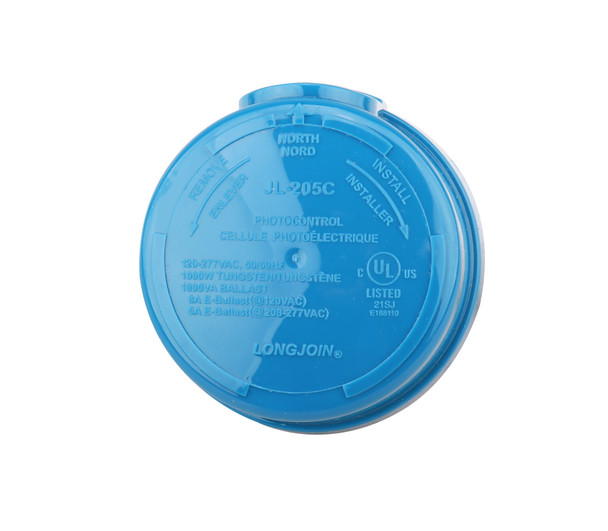

Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified

By Eiko Global
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified
Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Eiko JL-205C, 3-pin NEMA Twist-Lock On/Off Photocell, 120-277V, IP67, UL Certified

$40.30
  • SKU: E-JL-205C
  • MPN: JL-205C

Quick Overview

Compact 3-pin NEMA twist-lock on/off photocell, 120-277V, IP67 rated, with 6 Lx on/50 Lx off levels. Ideal for outdoor lighting automation.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Eiko JL-205C is a reliable 3-pin NEMA twist-lock on/off photocell, designed to automate outdoor lighting by sensing ambient light levels. This model is part of Eiko’s trusted JL series, known for durability and consistent performance in demanding environments.

Key Features and Benefits

  • Automatically turns lights on at 6 Lx and off at 50 Lx for energy savings
  • Wide input voltage range of 120-277V for versatile installation
  • IP67 rated for superior protection against dust and water
  • ANSI C136.10-2010 and UL certified for safety and reliability
  • Operates in extreme temperatures from -40°F to 158°F
  • 2-year warranty for peace of mind

Specifications

  • Input Voltage: 120-277V, 50/60Hz
  • Max Current: 5A
  • Power Restriction: load must be >120W
  • On Level: 6 Lx
  • Off Level: 50 Lx
  • Ambient Temperature: -40°F to 158°F (-40°C to 70°C)
  • IP Rating: IP67
  • Certifications: ANSI C136.10-2010, UL Certified (US & Canada)

Common Uses

Perfect for street lights, parking lots, area lighting, and other outdoor lighting applications that require automatic dusk-to-dawn operation.

RESOURCES AND DOWNLOADS

Eiko JL-205C Spec Sheet
