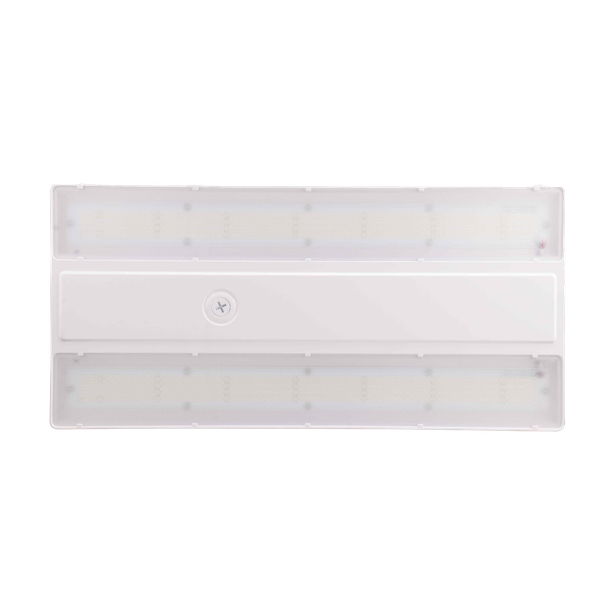

EiKO LH1 Pro Linear High Bay, 160W, 5000K

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO LH1 Pro Linear High Bay, 160W, 5000K

Now: $84.55
Reg: $130.76
Sale 35%
You save $ 46.21
  • SKU: E-LH1-160-50
  • MPN: LH1-160-50

Quick Overview

EiKO LH1 Pro linear high bay delivers 24,000 lumens at 160W with 5000K output, 120-277V, 277-480V input, 0-10V dimming, DLC Premium listing, and durable die-cast aluminum construction for demanding industrial spaces.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO LH1 Pro Series is a high-performance linear high bay family built for large indoor commercial and industrial environments. Designed for reliable output and broad coverage, this 160W model combines strong efficacy, robust construction, and controls-ready flexibility for modern facilities.

Key Features and Benefits

  • Delivers powerful high-bay illumination with excellent efficiency up to 150 lm/W for lower operating costs
  • Standard 0-10V dimming with dim-to-off supports energy-saving control strategies
  • Controls-ready design accepts plug-and-play motion/daylight sensors for smarter operation
  • DLC Premium, UL Listed, FCC, RoHS, and CAN ICES-005 compliance supports project confidence
  • Backed by a 5-year limited warranty for long-term peace of mind
  • Rugged die-cast aluminum housing and impact-resistant polycarbonate lens built for demanding sites

Specifications

  • Lumen Output: 24000
  • Wattage: 160W
  • Input Voltage: 120-277, 277-480V
  • Color Temperature: 5000K
  • CRI: >80
  • Beam Angle: 90°
  • Power Factor: >0.9
  • THD: <20%
  • Rated Life (L70): >100000 hours
  • Surge Protection: 6kV standard
  • Fixture Size: 23" x 11"
  • Weight: 6.6 lbs
  • Location Rating: Damp location

Common Uses

Ideal for warehouses, distribution centers, manufacturing plants, gymnasiums, grocery and big-box retail spaces, data centers, cold storage areas, and vehicle maintenance facilities.

RESOURCES AND DOWNLOADS

EiKO LH1 Pro Linear High Bay Spec Sheet
