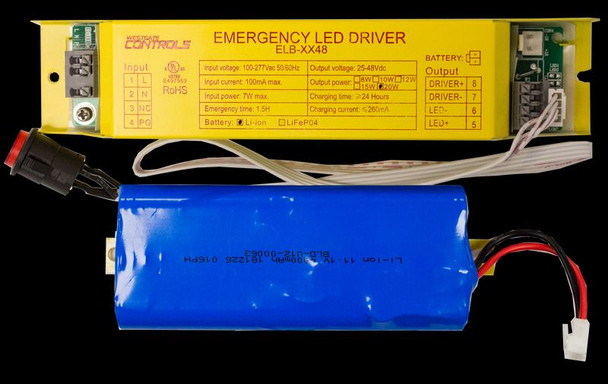

ELB-2048 Emergency LED Driver

ELB-2048 Emergency LED Driver

Ensure your lighting systems are always operational during power outages with the ELB-2048 Emergency LED Driver. This efficient driver supports a universal input voltage of 100-277Vac at 50/60Hz and features a rapid 24-hour charging time. Enjoy peace of mind with a robust 5-year warranty and compliance with major safety standards.

Key Features

• Complies with most safety standards for lighting
• Certified with CSA C22.2 NO.141 UL924
• Equipped with an external lithium battery
• Comprehensive battery protections: overcharge, over-discharge, and short circuit
• Indicator displaying various working modes
• Supports 500 cycles of standard charge and discharge
• RoHS compliant
• Provides 1.5 hours of emergency lighting

Technical Specifications

• Input Voltage: 100-277Vac, 50/60Hz
• Maximum AC Input Current: 100mA
• Output Current and Voltage: 420-800mA at 25-48Vdc
• Output Power: 20W
• Emergency Time: ≥ 1.5 hours
• Comprehensive 5-year warranty
• Illuminated Test Switch and Indicator Light
• Battery: 11.1V/4000mAH Li-ion
• Battery Charging Current: Maximum 250mA
• Charging Time: ≥ 24 hours
• Temperature Rating (Ambient): 0°C to 40°C (32°F to 104°F)

Operation Details

• AC Operation: When AC power is present, the LED load operates normally, and the emergency driver charges in standby mode, indicated by a green LED light.
• Emergency Operation: Upon AC power failure, the emergency driver switches to emergency mode while the green LED light turns off. Once AC power is restored, the driver returns to normal operation mode and resumes charging, indicated by the green LED light.
