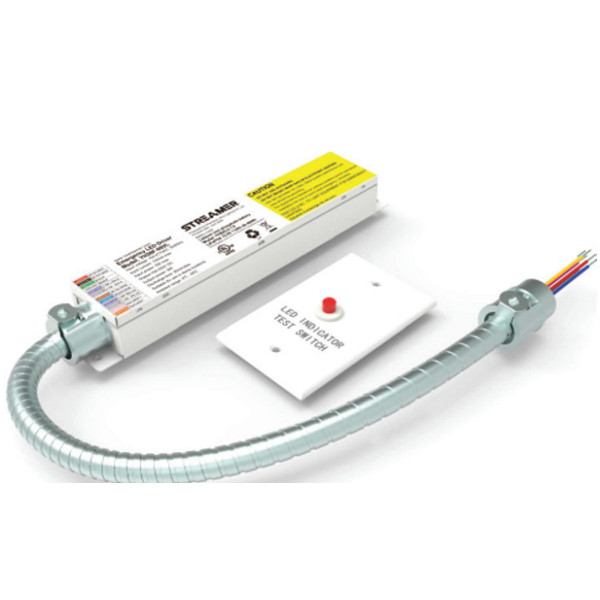

Emergency Battery Back Up, 9W, 120-277V, 90 minute, 0-10V Dimming

Transform your standard LED fixture into a reliable emergency solution with the Halco Lighting Technologies BBU/EM9WU. This emergency battery backup provides 9W of constant power, ensuring your lights stay on when you need them most.

Key Features and Benefits

• Transforms standard LED fixtures into emergency LED fixtures.
• Compatible with 0-10V dimming LED fixtures up to 100W.
• Equipped with dual function indicator light/test switch.
• 120-200VDC output voltage with additional relay for controlling standard LED drivers.
• Ambient temperature range from 10-60°C.
• Design life of 50,000 hours.
• UL Listed for damp location rated fixtures.

Specifications

• Input Voltage: 100-277VAC, 50/60Hz.
• Input Current: 100mA max.
• Output Voltage (Emergency Mode): 9W, constant power.
• Battery Pack: LiFePO4 12.8V, 1600mAh, 20.48Wh.
• Recharge Time: 24 hours.
• Discharge Time: 90 minutes.
• Max Casing Temperature: 70°C.

Common Uses

Ideal for use in commercial and industrial settings where emergency lighting is crucial, such as offices, warehouses, and public buildings.
