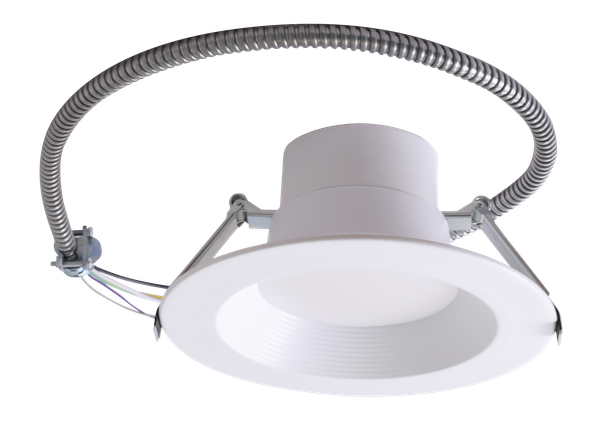

Energetic Lighting E4DL(M) Series 6" Recessed Can Light, 1400/1000/800, 17W/12W/10W, 120-347V, 3000K/3500K/4000K, CRI 90, White, 0-10V Dimming

By Energetic Lighting
Energetic Lighting E4DL(M) Series 6" Recessed Can Light, 1400/1000/800, 17W/12W/10W, 120-347V, 3000K/3500K/4000K, CRI 90, White, 0-10V Dimming

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Energetic Lighting E4DL(M) Series 6" Recessed Can Light, 1400/1000/800, 17W/12W/10W, 120-347V, 3000K/3500K/4000K, CRI 90, White, 0-10V Dimming

$23.05
  • SKU: ELI-E4DL6M14E93040-DS
  • MPN: E4DL6M14E93040-DS

Quick Overview

6" commercial LED downlight with field-selectable wattage and CCT, delivering up to 1400 lumens. Features 120-347V input, 0-10V dimming, CRI 90, and damp-location rating for offices, schools, retail, and healthcare.

ETL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Energetic Lighting E4DL(M) 6" downlight is a versatile commercial LED solution designed for both retrofit and new construction projects. Built for broad application flexibility, it combines selectable output and color temperature options with reliable performance for modern code-conscious installations.

Key Features and Benefits

  • Field-adjustable light output with three lumen and wattage settings to match project needs
  • Selectable CCT (3000K/3500K/4000K) for adaptable visual comfort across spaces
  • 0-10V dimming support enables smooth control and energy-saving operation
  • High 90 CRI improves color quality for occupant comfort and task visibility
  • ETL listed and backed by a 5-year warranty for dependable commercial use
  • Spring-arm mounting and integrated flexible conduit pigtail simplify installation

Specifications

  • Lumen Output: 1400|1000|800
  • Wattage: 17W|12W|10W
  • Voltage: 120-347V
  • Color Temperature: 3000K|3500K|4000K
  • Beam Angle: 100°
  • Power Factor: 0.9
  • THD: 0.2
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: 113°F
  • Minimum Operating Temperature: -13°F
  • Dimensions: 8.27"L x 8.27"W x 3.92"H
  • Finish / Color: White

Common Uses

Ideal for offices, schools, retail stores, hospitality venues, healthcare facilities, and other commercial interiors requiring efficient, dimmable, and adaptable recessed lighting in damp-location environments.
