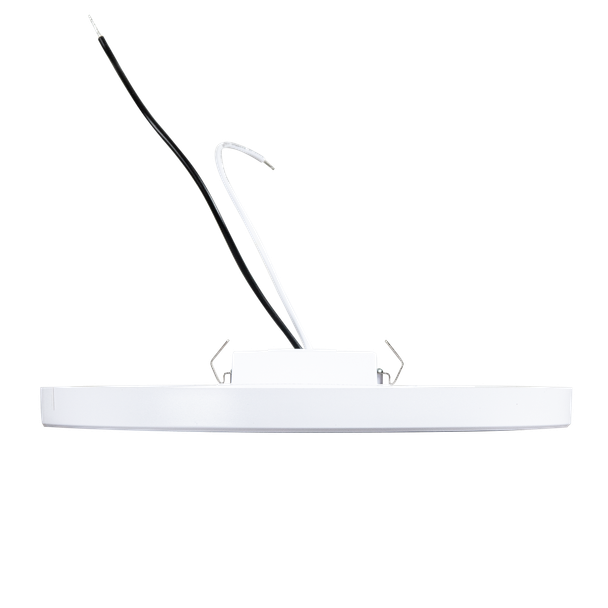

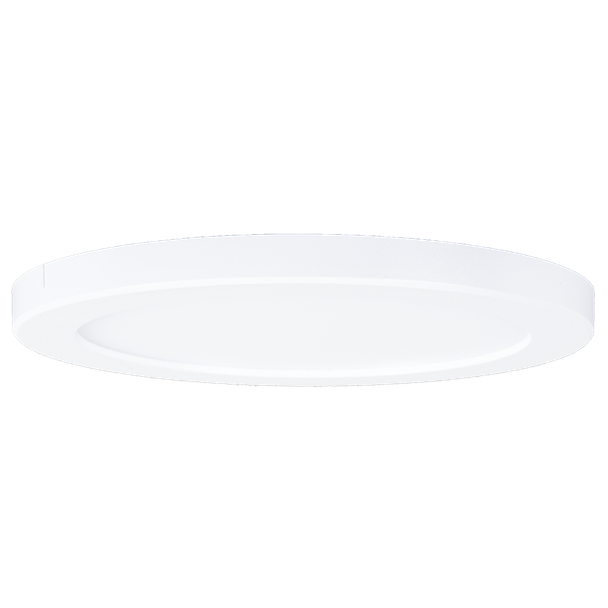

Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming

By Energetic Lighting
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming
Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Energetic Lighting E5DL LED Commercial Downlight, 7", 900 lumens, 12W, 120V, 5CCT selectable 2700K-5000K, 90 CRI, Triac dimming

$12.25
  • SKU: ELI-E5DL7-92750
  • MPN: E5DL7-92750

Quick Overview

7" ultra-thin commercial LED downlight with 900 lm output, 12W power draw, 5CCT field selection (2700K-5000K), 90 CRI, and Triac dimming for recessed can retrofit or direct J-box mounting.

ETL Listed
Title 24 Compliant
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Energetic Lighting E5DL series is a versatile commercial downlight family designed for fast retrofit and new-install flexibility. This 7" model delivers efficient, high-quality illumination with selectable color temperature, making it a practical choice for varied interior lighting needs across commercial spaces.

Key Features and Benefits

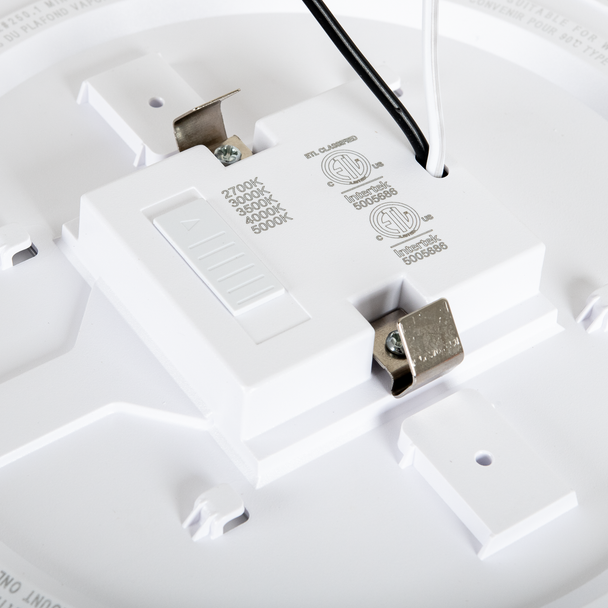

  • Field-selectable 5CCT tuning lets you choose the right ambiance from warm to daylight tones on-site.
  • Ultra-slim profile supports clean ceiling aesthetics while simplifying installation in tight plenum spaces.
  • Dual-mount capability allows direct J-box mounting or recessed can retrofit for easier project upgrades.
  • High 90 CRI light quality improves visual clarity and color appearance in task and general lighting areas.
  • Triac dimming compatibility supports smooth light-level control for comfort and energy savings.
  • Backed by a 5-year warranty and supported by ETL, RoHS, and Title 24 high-efficacy compliance indicators.

Specifications

  • Lumen Output: 900
  • Wattage: 12W
  • Voltage: 120V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 90
  • Power Factor: 0.90
  • THD: 20
  • Rated Life (70 Hours): 50000
  • Operating Temperature: -25b0C to 40b0C (-13b0F to 104b0F)
  • Dimensions: 7.5" diameter, 0.6" H1, 1.1" H2
  • Unit Weight: 0.8 lbs

Common Uses

Ideal for offices, corridors, retail spaces, hospitality areas, multifamily common areas, and other commercial interiors requiring low-profile, tunable white downlighting for retrofit or new construction projects.

RESOURCES AND DOWNLOADS

Energetic Lighting E5DL LED Commercial Downlight Spec Sheet
