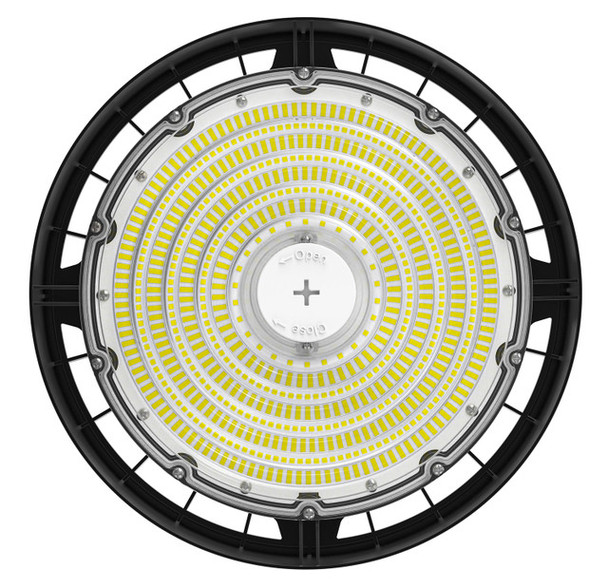

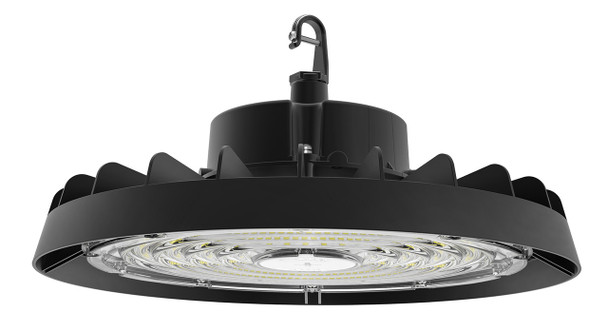

ESL Vision HaloFlex Series Round High Bay, 100W/150W/200W Selectable, 3500K/4000K/5000K Selectable, Black, 90° Beam

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision HaloFlex Series Round High Bay, 100W/150W/200W Selectable, 3500K/4000K/5000K Selectable, Black, 90° Beam

$106.75
  • SKU: ESL-ESL-HFX-100200W-13550-BK-90D
  • MPN: ESL-HFX-100200W-13550-BK-90D

Quick Overview

Selectable LED round high bay for warehouses and industrial spaces with 100W/150W/200W and 3500K/4000K/5000K options, up to 31,087 lumens, 0-10V dimming, IP65 protection, and 120-277V operation.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left: 99
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision HaloFlex Series round high bay is a versatile, performance-driven fixture designed for demanding commercial and industrial environments. This configuration combines selectable wattage and CCT in one SKU, helping contractors and facility teams simplify inventory while dialing in light levels on site. As part of ESL Vision’s high bay lineup, it delivers strong output, robust protection, and control-ready functionality for modern lighting upgrades.

Key Features and Benefits

  • Field-selectable power and color temperature for flexible commissioning and retrofit adaptability
  • High-output performance up to 31,087 lumens with efficacy up to 155 lm/W for energy savings
  • 0-10V dimming with 12V auxiliary support for advanced control integration
  • Rugged die-cast housing and optical-grade polycarbonate lens for long-term durability
  • IP65-rated construction with 6kV surge protection for reliable operation in harsh conditions
  • Certified to UL, DLC Premium, and FCC standards with a 5-year warranty for confidence and compliance

Specifications

  • Lumen Output: 31087
  • Wattage: 100W|150W|200W
  • Voltage: 120-277V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: 80
  • Frequency (Hz): 50/60
  • Power Factor: 0.95
  • THD: 20
  • Max Ambient Temperature: 122°F (50°C)
  • Rated Life (70 Hours): 54000
  • Beam Angle: 90°
  • IP Rating: IP65
  • Dimensions: Ø12.56" x 4.84"
  • Weight: 5.73 lbs

Common Uses

Ideal for warehouses, manufacturing facilities, gymnasiums, distribution centers, and other high-ceiling indoor or semi-protected spaces requiring efficient, high-lumen illumination with control compatibility.
