ESL Vision IntelliSense Backlit Panel, 2x2, 20W/30W/40W, 3500K/4000K/5000K, 120-277V, 0-10V Dimming

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

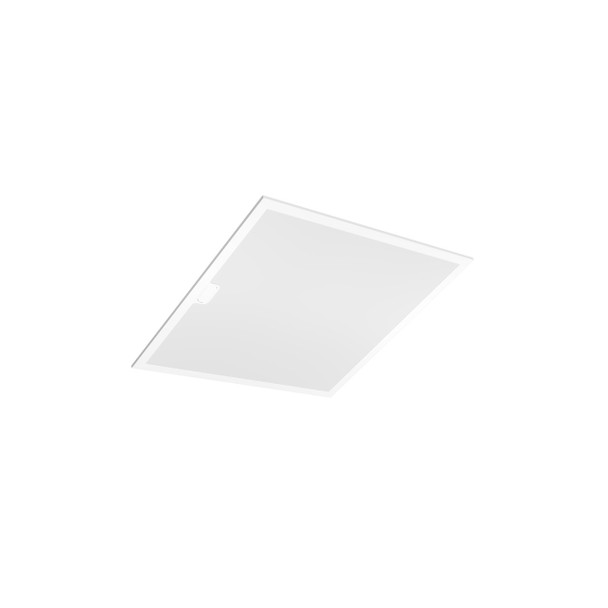

ESL Vision IntelliSense Backlit Panel, 2x2, 20W/30W/40W, 3500K/4000K/5000K, 120-277V, 0-10V Dimming

$53.60
  • SKU: ESL-ESL-ISS-620-22-2040W-3550K
  • MPN: ESL-ISS-620-22-2040W-3550K

Quick Overview

ESL Vision IntelliSense 2x2 backlit LED panel with selectable 20W/30W/40W and 3500K/4000K/5000K settings, up to 5,143 lumens, 0-10V dimming, and integrated sensor-ready design for commercial indoor spaces.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left: 568
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision IntelliSense™ Backlit Panel in the ISS 620 series is a versatile 2x2 architectural lighting solution designed for modern commercial interiors. Built for flexibility, this fixture combines field-adjustable wattage and CCT with smooth dimming performance to simplify specification and inventory. As part of ESL Vision’s intelligent panel lineup, it delivers dependable light quality and long-life operation for everyday applications.

Key Features and Benefits

  • Selectable output lets you tune light levels with 20W, 30W, or 40W settings in one fixture.
  • 3-CCT adjustability (3500K/4000K/5000K) supports warm-to-cool visual preferences across project types.
  • Backlit optical design provides uniform illumination and a clean, low-profile ceiling appearance.
  • 0-10V dimming compatibility enables energy-saving control integration.
  • IntelliSense™ sensor-enabled platform supports occupancy and daylight harvesting control options.
  • DLC Premium and UL Certified with a 5-year warranty for confidence in commercial deployments.

Specifications

  • Lumen Output: up to 5,143
  • Input Voltage: 120-277VAC
  • Input Frequency: 50/60Hz
  • CRI: >80
  • Efficacy: up to 143 lm/W
  • Power Factor: >0.9
  • THD: <15%
  • Operating Temperature: -4b0F to 122b0F (-20b0C to 50b0C)
  • Rated Life (L70): 100,000 hours
  • Dimensions: 23.74" x 23.74" x 1.42"
  • Weight: 5.78 lbs

Common Uses

Ideal for offices, schools, healthcare facilities, retail spaces, corridors, and other indoor commercial environments requiring efficient, low-glare general illumination with control-ready functionality.
