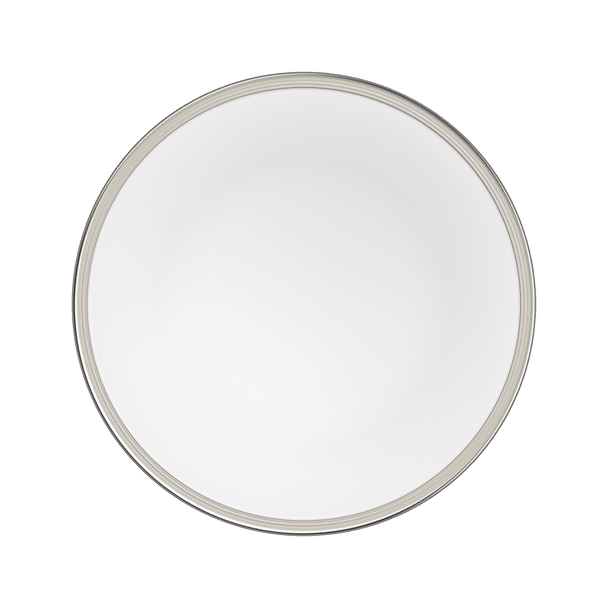

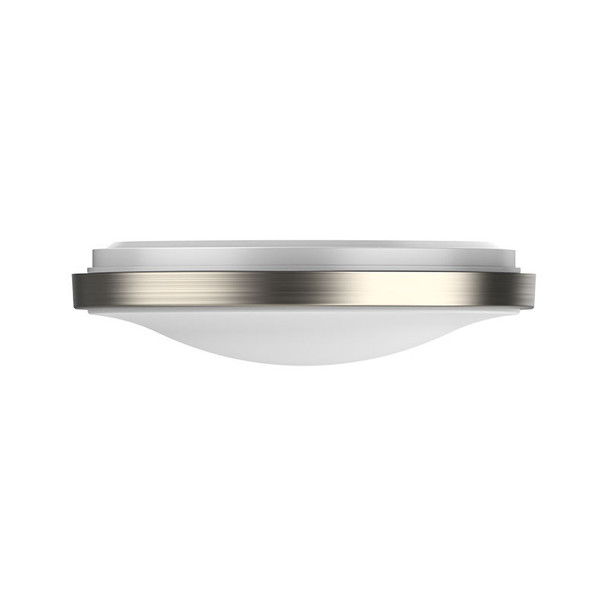

FSL Series 20 Watt Single Ring Flush Mount - CCT Adjustable

Overview

The WM-FSL-13-MCT5 FSL Series LED Flush Mount Surface Fixture is an optimal lighting solution for both residential and commercial settings. This high-efficiency fixture utilizes advanced Driver on Board (DOB) technology, eliminating the need for external drivers or transformers. Consuming just 20 watts, it emits an impressive 1,500 lumens and allows you to customize the color temperature with in-fixture options ranging from 2700K to 5000K. It’s designed to last up to 50,000 hours and includes a 5-year limited warranty, ensuring long-term reliability and performance.

Features

• Construction: Made with robust spun aluminum and steel in a contemporary brushed nickel finish.
• Optics: Features a white translucent acrylic lens for even light distribution.
• Warranty: Comes with a 5-year limited warranty.
• Longevity: Rated for up to 50,000 hours of continuous use.
• MCT: Multiple color temperature settings (2700K/3000K/3500K/4000K/5000K) selectable via an internal switch.
• High Luminosity: Produces 1,500 lumens with a high efficacy of 75 LPW.

Electrical Specifications

• Voltage: Operates at 120 VAC and 60Hz.
• Wattage: Only 20 watts needed for high efficiency.
• Power Factor: Greater than 0.9 for superior energy efficiency.

Mechanical Specifications

• Optics: White translucent acrylic lens ensures uniform light distribution.
• Construction: Crafted from durable spun aluminum and steel with a brushed nickel finish.
• Gasket: Features a closed-cell neoprene foam gasket for damp location suitability.
• Operating Temperature: Ideal for environments ranging from -4°F to +104°F.
• Damp Location: Suitable for damp areas when the gasket is used.

Lighting Specifications

• Dimmability: Dimmable down to 10% using standard TRIAC LED dimmers.
• Total Lumens: Emits 1,500 lumens.
• Color Temperatures: Choose from 2700K, 3000K, 3500K, 4000K, and 5000K.
• CRI: Color Rendering Index of 80 or higher ensures vivid color rendering.
• IP Rating: IP20 rated for basic protection.

Applications

• Perfect for installation in residential and commercial spaces on ceilings or walls where a low-profile, high-efficiency lighting solution is needed.
