Description

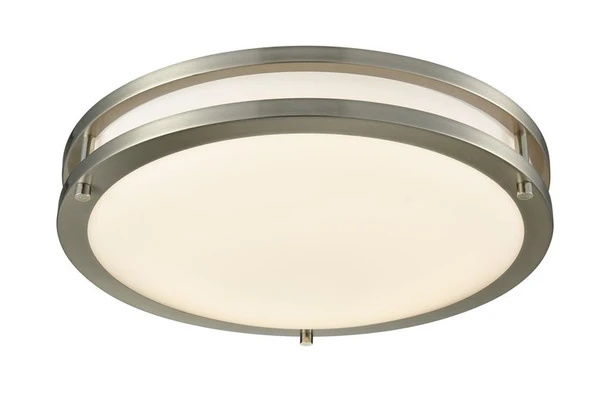

FDL series 12-inch double ring flush mount, 15 watts, 1,100 lumens, available in 3000K/ 4000K/ 5000K CCT ajustable, up to 50,000 hours rated life, suitable for damp locations when gasket is used, 5 years limited warranty.

The LED Flush Mount Surface Fixture is a low profile downlight intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These
flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications.

FEATURES

Construction: Spun Aluminum + Steel (Brushed Nickel Finish)
Optics: White Translucent Acrylic Lens
5-Year Warranty
50,000 Hours Rated Life
MCT: Multi Color Temperature (Selectable with Switch Inside Fixture)
High Lumens

ELECTRICAL

Voltage: 120V AC
Wattage: 15W
Power Factor: >0.9
Efficacy: 73 LPW

MECHANICAL

Optics: White Translucent Acrylic Lens
Construction: Spun aluminum Steel (Brushed Nickel Finish)
Gasket: Closed Cell Neoprene Foam Gasket
Operating Temp: -4ºF~104ºF
Suitable for Damp Locations When Gasket is Used

LIGHTING

Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
Total Lumens: 1100LM
Color Temperatures: 3000K/4000K/5000K
Multi-CCT (selectable with switch is on the LED Board Under the Lens)
Color Rendering Index: CRI ≥ 80
IP Rating: IP20

APPLICATIONS

The LED Flush Mount Surface Fixture is a low profile down light intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications

RESOURCES AND DOWNLOADS

12-Inch Double Ring Flush Mount, 5CCT Adjustable Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B1-U2-G1
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|Damp Location\|ENERGY STAR\|UL Listed
Country of Origin:	CHINA
Dimming Type:	Phase
Driver Type:	120V
Finish / Color:	Silver
Fixture Size:	Other
Housing Material:	Aluminum\|Steel
Item Height (Inch):	3.5
Item Length (Inch):	12
Item Weight (LBS):	2.14
Item Width (Inch):	12
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	White translucent acrylic lens
Light Source:	LED
Lumen Output:	1100
Operating Temperature:	-4°F to 104°F
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120V
Wattage:	15W
