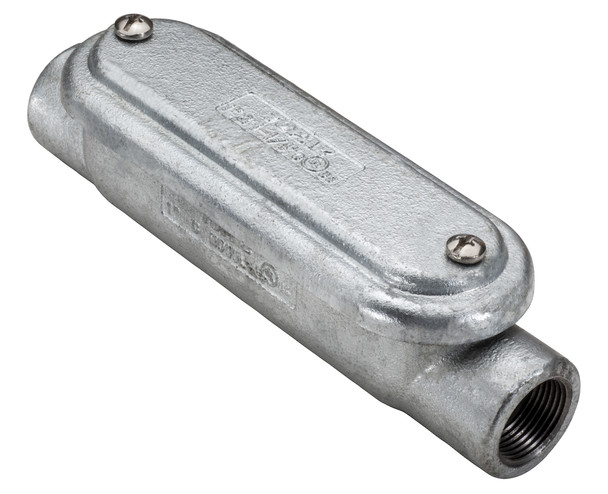

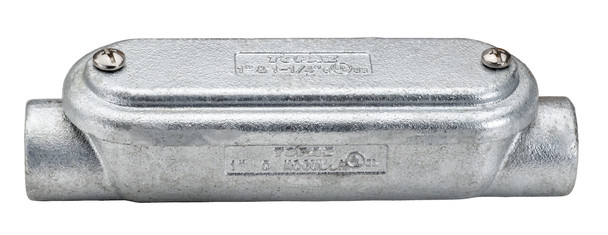

The Garvin Industries MC4CGHDG is a robust 1-1/4 inch C type mogul conduit body designed for demanding electrical installations. Featuring a hot dip galvanized malleable iron construction, this conduit body comes equipped with built-in cable pulling rollers, a raised cover, and a neoprene gasket for superior protection in wet locations. Its large internal volume and smooth hub bushings make it perfect for pulling, splicing, and tapping large conductors, especially those that are stiff.

Key Features and Benefits

• Durable hot dip galvanized malleable iron body resists corrosion
• Built-in cable pulling roller eases conductor installation
• Threaded NPT tapered hubs for secure fit with Rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Raised cover and neoprene gasket ensure a weather-tight seal
• Stainless steel cover screws for added longevity
• UL Listed for wet locations and meets NEMA 3R requirements

Specifications

• Size: 1-1/4"
• Max Number of Conductors: 3
• Max Conductor Size: 2 AWG
• Internal Volume: 25 in³
• Material: Malleable iron, hot dip galvanized
• Gasket: Neoprene rubber
• Screws: Stainless steel
• Certifications: UL 514A/514D, NEMA FB 1-2014, NEMA 3R, Fed. Spec W-C-586D, A-A-50563

Common Uses

Ideal for commercial and industrial electrical installations where large or stiff conductors need to be pulled, spliced, or tapped. Perfect for wet locations and demanding environments.
