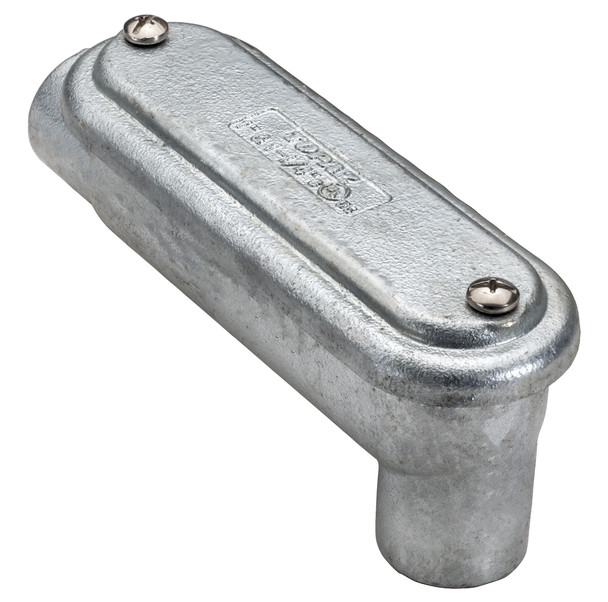

Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket

By Garvin Industries
Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket
Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket
Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket
Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Garvin Industries Mogul Conduit Body, LB Type with Rollers, Hot Dip Galvanized, Malleable Iron, 1-1/4" Hub, Cover and Gasket

$135.60
MSRP: $401.29
You save $ 265.69 (66%)
  • SKU: GI-MLB4CGHDG
  • MPN: MLB4CGHDG

Quick Overview

1-1/4" mogul LB conduit body with built-in rollers, hot dip galvanized malleable iron, includes cover and gasket for wet locations.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Garvin Industries MLB4CGHDG is a robust 1-1/4" mogul LB conduit body designed for demanding electrical installations. Part of Southwire's trusted lineup, this conduit body stands out for its durability and thoughtful engineering, making it a top choice for professionals.

Key Features and Benefits

  • Hot dip galvanized malleable iron construction for superior corrosion resistance
  • Built-in cable pulling roller for easier wire installation
  • Threaded NPT tapered hubs fit rigid and IMC conduit
  • Integral hub bushings protect conductor insulation
  • Assembled with raised cover, neoprene gasket, and stainless steel screws for wet location use
  • Provides large access for pulling, splicing, and tapping large conductors
  • UL listed and NEMA 3R rated for safety and reliability

Specifications

  • Hub Size: 1-1/4"
  • Max Number of Conductors: 3
  • Max Conductor Size: 2 AWG
  • Internal Volume: 25 in³
  • Material: Malleable iron, hot dip galvanized
  • Gasket: Neoprene rubber
  • Certifications: UL 514A/514D, Fed. Spec W-C-586D, NEMA FB 1-2014, NEMA 3R

Common Uses

Ideal for pulling straight or 90° turns, making taps and splices, and providing access to wiring in wet or outdoor locations. Perfect for commercial and industrial conduit runs where durability and ease of maintenance are critical.

RESOURCES AND DOWNLOADS

Garvin Industries Mogul Conduit Body Spec Sheet
