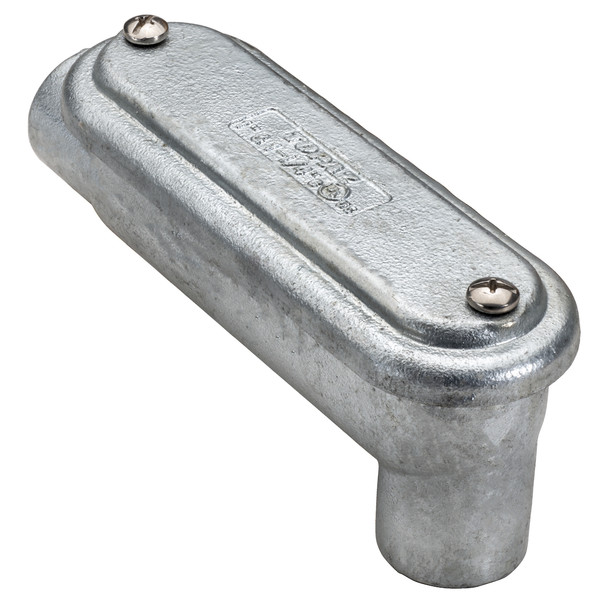

The Garvin Industries MLB3CGHDG is a robust 1" LB type mogul conduit body, engineered with built-in rollers for easier cable pulling. Crafted from hot dip galvanized malleable iron, it includes a raised cover and gasket for superior protection in wet locations. This conduit body is a standout in Southwire's lineup, offering a large internal volume and smooth hub bushings to safeguard conductor insulation.

Key Features and Benefits

• Built-in cable pulling roller for effortless wire installation
• Hot dip galvanized finish for enhanced corrosion resistance
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Raised cover and neoprene gasket ensure a tight seal in wet locations
• Stainless steel cover screws for durability
• UL listed and NEMA 3R rated for safety and reliability

Specifications

• Size: 1"
• Max Number of Conductors: 3
• Max Wire Size: 4 AWG
• Internal Volume: 19 in³
• Material: Malleable iron body, neoprene gasket, stainless steel screws
• Finish: Hot dip galvanized
• Certifications: UL 514A, UL 514D, NEMA 3R, Fed. Spec W-C-586D, A-A-50563

Common Uses

Ideal for pulling, splicing, and tapping large conductors in commercial and industrial electrical installations, especially where straight or 90° turns are needed and wet location protection is required.
