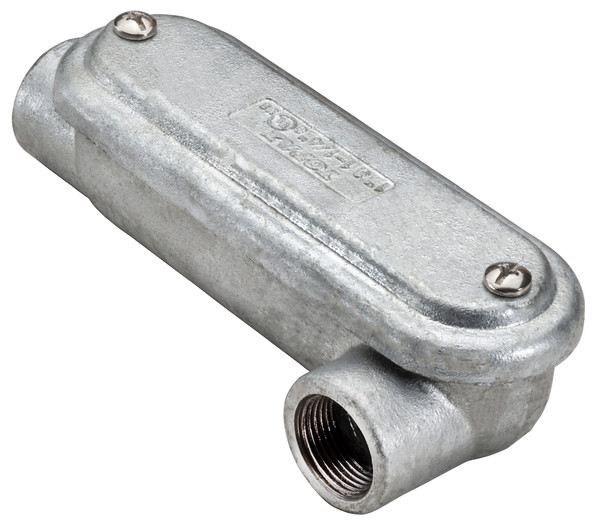

The Garvin Industries MLL3CGHDG is a 1" LL type mogul conduit body, expertly crafted from hot dip galvanized malleable iron. Designed for demanding environments, this conduit body comes complete with a cover and gasket, ensuring a secure and weather-resistant fit. Its large, accessible opening makes it ideal for pulling, splicing, and tapping large conductors, especially in wet locations.

Key Features and Benefits

• Hot dip galvanized malleable iron body for superior corrosion resistance
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Integral hub bushings protect conductor insulation
• Comes assembled with raised cover, neoprene gasket, and stainless steel screws
• cULus listed for wet locations and meets NEMA 3R requirements
• Provides easy access for maintenance and future wiring changes

Specifications

• Size: 1"
• Max Number of Conductors: 3
• Max Conductor Size: 4 AWG
• Internal Volume: 19 in³
• Material: Malleable iron, hot dip galvanized
• Gasket: Neoprene rubber
• Screws: Stainless steel
• Certifications: UL 514A, UL 514D, NEMA FB 1-2014, NEMA 3R

Common Uses

Perfect for use in commercial and industrial electrical installations, especially where large or stiff conductors are used. Ideal for wet locations, straight or 90° conduit pulls, splicing, and making taps.
