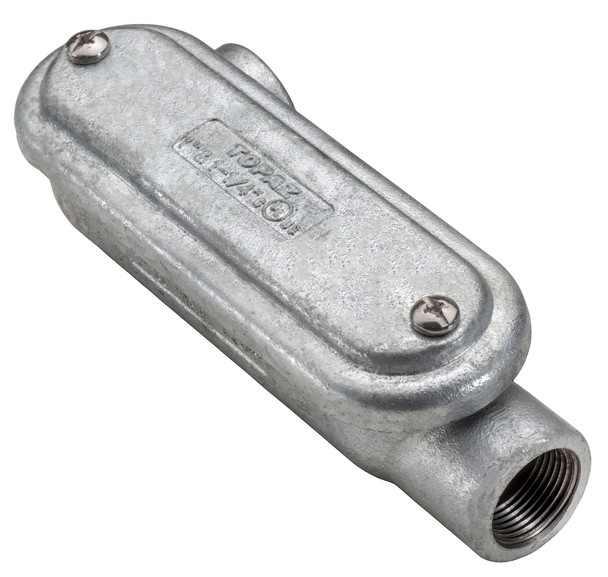

Garvin Industries MLL6CGHDG, 2" LL Type Mogul Conduit Body, Hot Dip Galvanized, Malleable Iron, With Cover and Gasket

By Garvin Industries

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Garvin Industries MLL6CGHDG, 2" LL Type Mogul Conduit Body, Hot Dip Galvanized, Malleable Iron, With Cover and Gasket

$200.15
MSRP: $374.09
You save $ 173.94 (46%)
  • SKU: GI-MLL6CGHDG
  • MPN: MLL6CGHDG

Quick Overview

2" LL type mogul conduit body, hot dip galvanized malleable iron, includes cover and gasket, large opening for pulling 4/0 AWG conductors.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Garvin Industries MLL6CGHDG is a robust 2" LL type mogul conduit body, crafted from hot dip galvanized malleable iron for superior durability and corrosion resistance. Designed for demanding electrical installations, this conduit body comes complete with a raised cover, neoprene gasket, and stainless steel cover screws, ensuring a secure and weather-resistant seal. Its spacious interior allows for easy pulling, splicing, and tapping of large conductors, making it a reliable choice for both straight and 90° turns in conduit runs.

Key Features and Benefits

  • Hot dip galvanized malleable iron body for maximum strength and corrosion protection
  • Includes raised cover, neoprene gasket, and stainless steel screws for a weather-tight seal
  • Threaded NPT tapered hubs fit rigid and IMC conduit
  • Large internal volume (75 in³) for easy wiring and splicing of up to 4/0 AWG conductors
  • c(UL)us listed for wet locations
  • Smooth, integral hub bushings protect conductor insulation
  • Complies with UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, and NEMA 3R standards

Specifications

  • Size: 2"
  • Material: Malleable iron, hot dip galvanized finish
  • Gasket: Neoprene rubber
  • Cover Screws: Stainless steel
  • Internal Volume: 75 in³
  • Max Conductor Size: 4/0 AWG
  • Certifications: UL 514A, UL 514D, Fed. Spec W-C-586D, A-A-50563, NEMA 3R

Common Uses

Ideal for commercial and industrial conduit runs requiring large conductor pulls, splicing, or taps, especially in wet or outdoor environments.

RESOURCES AND DOWNLOADS

Garvin Industries MLL6CGHDG Spec Sheet
