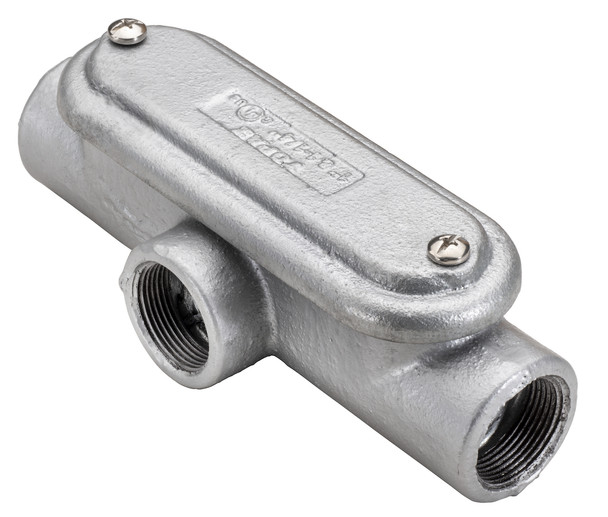

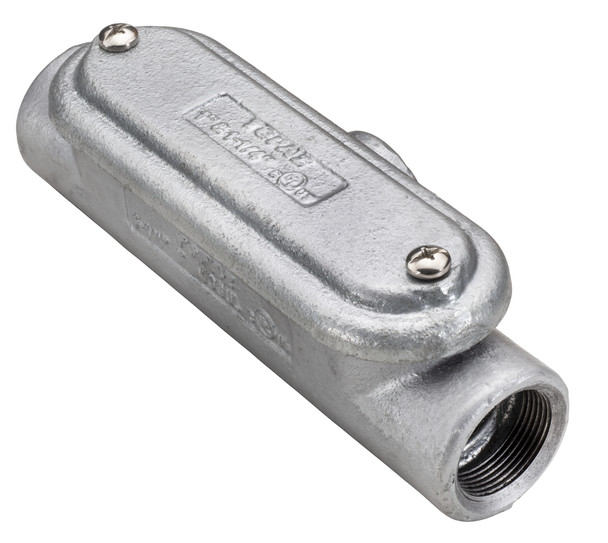

The Garvin Industries MT5CGHDG is a robust 1-1/2" T type mogul conduit body, crafted from durable malleable iron and finished with hot dip galvanization. It comes complete with a raised cover, neoprene gasket, and stainless steel screws, ensuring a secure and weather-resistant installation. This conduit body is designed for easy access to wiring, making maintenance and future changes simple and efficient.

Key Features and Benefits

• Hot dip galvanized malleable iron body for superior corrosion resistance
• Includes cover, gasket, and stainless steel screws for a complete, weatherproof assembly
• Threaded NPT tapered hubs fit rigid and IMC conduit
• Large internal volume (57 in³) for easy wire pulling, splicing, and taps
• c(UL)us listed for wet locations and meets NEMA 3R standards
• Smooth hub bushings protect conductor insulation
• Ideal for straight or 90° turns, taps, and splices with stiff or large conductors

Specifications

• Size: 1-1/2"
• Material: Malleable iron, hot dip galvanized
• Internal Volume: 57 in³
• Max Conductor Size: 1/0 AWG
• Dimensions: 13.74" x 10" x 2.26"
• Certifications: UL 514A/514D, NEMA 3R, Fed. Spec W-C-586D, A-A-50563

Common Uses

Perfect for commercial and industrial electrical installations where large conductors or multiple splices are required, especially in wet or outdoor environments.
