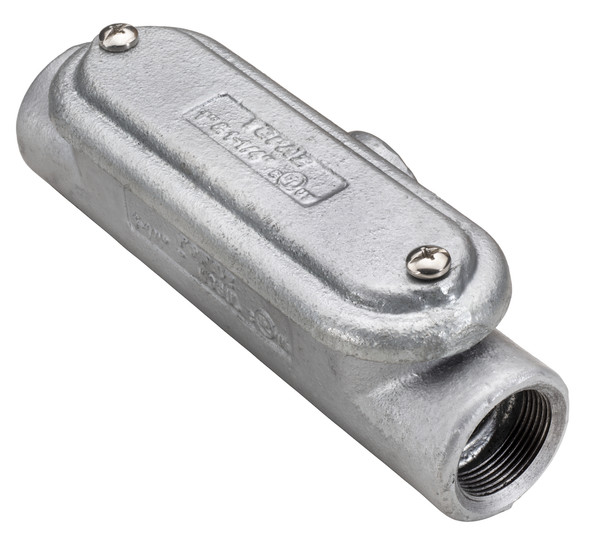

Garvin Industries MT9CGHDG, 3-1/2" T Type Mogul Conduit Body, Hot Dip Galvanized, Malleable Iron, With Cover and Gasket

By Garvin Industries

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Garvin Industries MT9CGHDG, 3-1/2" T Type Mogul Conduit Body, Hot Dip Galvanized, Malleable Iron, With Cover and Gasket

$789.85
MSRP: $1,564.36
You save $ 774.51 (50%)
  • SKU: GI-MT9CGHDG
  • MPN: MT9CGHDG

Quick Overview

3-1/2" T type mogul conduit body with cover and gasket, hot dip galvanized malleable iron, large 375 in³ volume, for pulling and splicing large conductors.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Garvin Industries MT9CGHDG is a robust 3-1/2" T type mogul conduit body, designed for demanding electrical installations. This conduit body stands out in Southwire's lineup for its heavy-duty malleable iron construction and hot dip galvanized finish, ensuring long-lasting performance in wet and challenging environments. It comes pre-assembled with a raised cover, neoprene gasket, and stainless steel screws for reliable sealing and easy access to wiring.

Key Features and Benefits

  • Hot dip galvanized malleable iron body for superior corrosion resistance
  • Large internal volume (375 in³) for easy pulling, splicing, and tapping of large conductors
  • Threaded NPT tapered hubs compatible with Rigid and IMC conduit
  • Integral hub bushings protect conductor insulation during installation
  • c(UL)us listed for wet locations and meets NEMA 3R requirements
  • Comes with raised cover, neoprene gasket, and stainless steel screws for secure, weather-resistant closure
  • Provides easy access for maintenance and future wiring changes

Specifications

  • Size: 3-1/2"
  • Max. number of conductors: 3
  • Max. conductor size: 350 MCM
  • Internal volume: 375 in³
  • Material: Malleable iron, hot dip galvanized
  • Gasket: Neoprene rubber
  • Screws: Stainless steel
  • Certifications: UL 514A/514D, Fed. Spec W-C-586D, NEMA FB 1-2014, NEMA 3R

Common Uses

Ideal for commercial and industrial electrical installations where large conductors need to be pulled, spliced, or tapped, especially in wet or outdoor environments.
