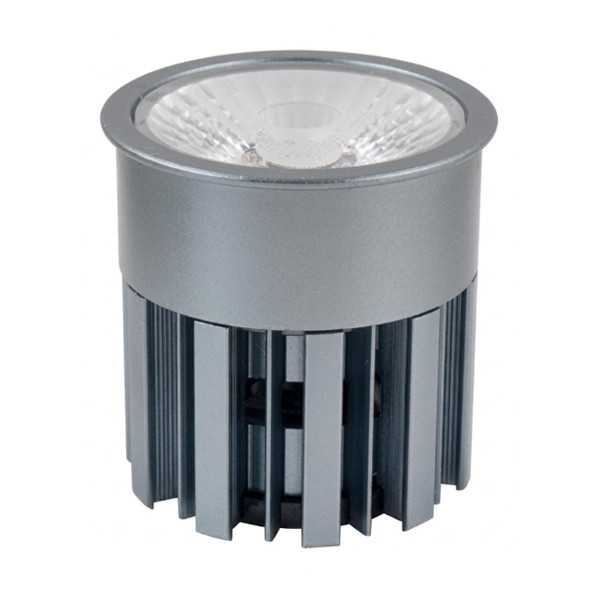

Green Creative 2" MiniFit Module, 5000K, 90 CRI, Flood 38°, 120V Phase Dimming

By Green Creative

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Green Creative 2" MiniFit Module, 5000K, 90 CRI, Flood 38°, 120V Phase Dimming

$42.15
  • SKU: GC-MM2/950/FL/DIM120
  • MPN: MM2/950/FL/DIM120

Quick Overview

2" MiniFit LED module for shallow plenum new construction and retrofit projects, delivering up to 780 lm with 90+ CRI, 5000K CCT, 120V phase dimming to 10%, IC rating, and wet-location compatibility with glass trims.

ETL Listed
Title 24 Compliant
JA8 Compliant
WET RATED
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Green Creative 2" MiniFit Module is a compact architectural recessed lighting solution designed for both new construction and retrofit applications. As part of the MiniFit series, it combines high color quality, shallow-depth installation, and flexible trim compatibility for modern commercial and residential spaces. Its small aperture and external driver design make it a practical choice where ceiling space is limited.

Key Features and Benefits

  • Shallow form factor supports installation in tight plenums, soffits, bulkheads, and casework.
  • High-quality COB LED delivers 90+ CRI with tight 3-step SDCM consistency for clean, accurate color rendering.
  • Smooth 120V phase dimming (forward/reverse phase) down to 10% for precise light control.
  • Field-interchangeable trim system offers design flexibility for gimbal, fixed glass, pinhole, and wall wash looks.
  • ETL listed for damp locations, with wet-location listing when paired with compatible glass trims.
  • JA8 Certified and Title 24 compliant, backed by a 5-year parts warranty on complete fixture assemblies.

Specifications

  • Lumen Output: 780
  • Wattage: 8W
  • Voltage: 120V
  • Frequency (Hz): 50|60
  • Color Temperature: 5000K
  • CRI: 90
  • Beam Angle: 38°
  • THD: 20
  • Power Factor: 0.9
  • Efficacy (lm/W): 98
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: 104°F (40°C)

Common Uses

Ideal for hospitality, residential, retail, and office interiors where a discreet 2" aperture and high-performance accent or general lighting are needed. Commonly used in shallow ceiling cavities, soffits, and millwork-driven architectural applications.
