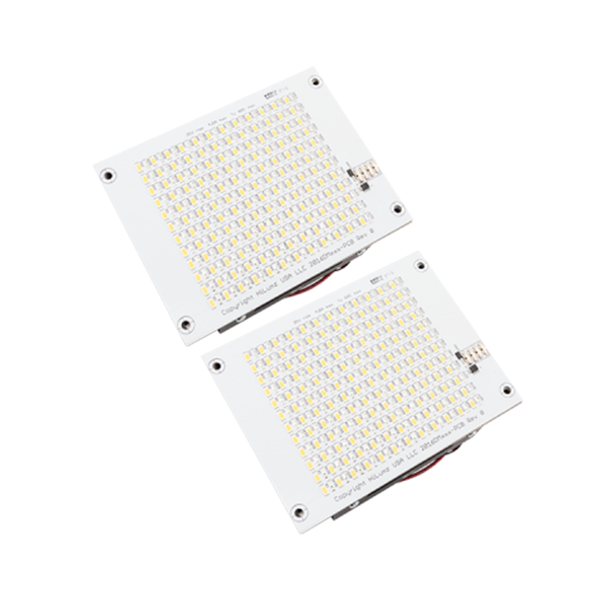

Diamonz DM240 retrofit kit is best choice for replacing 750W Metal Halide or HPS lamps. This retrofit is designed for maximum efficacy (lumens/watt), cool operating temps and long life. To obtain such high lumens/watt values requires the use of many LEDs. For this reason, optics are not available.
RECOMMENDED APPLICATION
- Parking Lot
- Floods
- Street Lights
- Wall Packs
- Canopies
- High/Low Bays
PRODUCT CERTIFICATIONS
- ELT (UL-1598-C
- DLC QPL Product
PROTECTION AGAINST
- Short Circuit
- Over-current
- Over-voltage
- Over-temperature with auto-recovery
ADDITIONAL INFORMATION
- CCT (options): 4000K, 5000K
- Beam Angle (std): 125°
- Certification: ETL (UL-1598-C) & cETL (ANSI/UL 1598/CAN/CSA C22.2); DLC by category
- Lifetime: 100,000 hours @ 55°C
- Lumens: 36,600 lm
- Replaces: 750W HID
- Driver Input Voltage (options): 100-277V
- Wattage (options): 232W
- Mount Type (options): Horizontal FlexMount E39, Vertical, FlexTrim Plate
- CRI: 5000K > 84
- Driver Dimming (options): 0-10V
- Efficacy (Lumens/Watt): 157 @ 5000K
RESOURCES AND DOWNLOADS
| SKU | HU-DM240 |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 5000K > 84 |
| Driver Type | 0-10V |
| Lumen Output | 36,600 |
| L70 Expected Life (hours) | 100,000 hours |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 232 |
