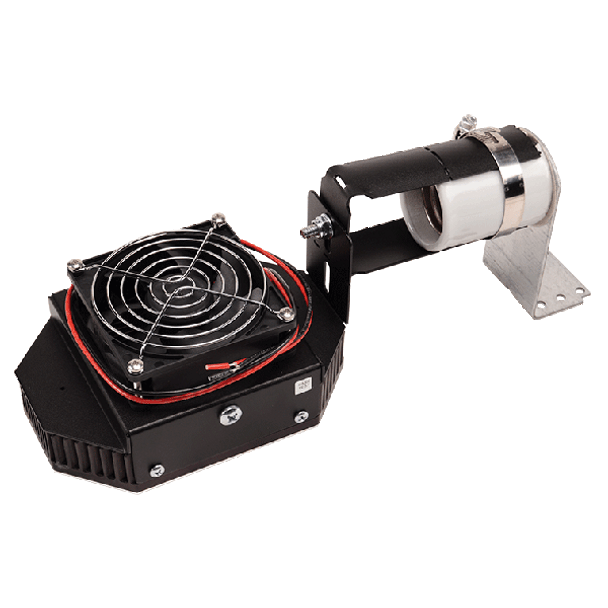

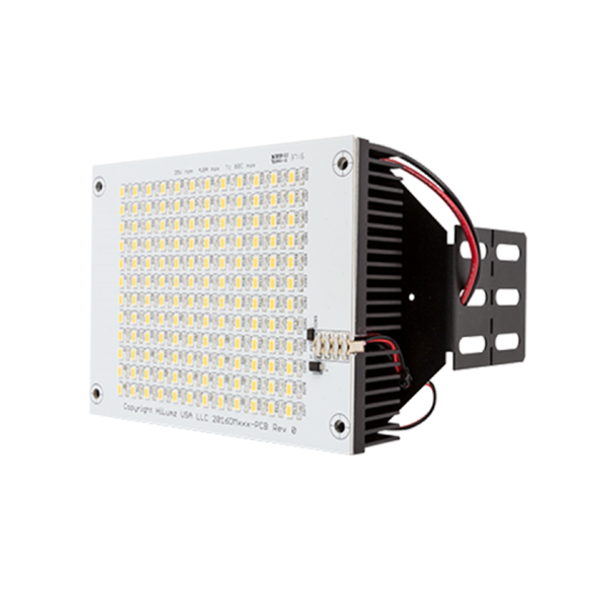

Diamonz DM60 retrofit kit is best choice for replacing 250W Metal Halide or HPS lamps. This retrofit is designed for maximum efficacy (lumens/watt), cool operating temps and long life. To obtain such high lumens/watt values requires the use of many LEDs. For this reason, optics are not available. If you need a lighting application that requires more controlled light distribution, such as Type V, please see our Diamonz DZ130 product.
RECOMMENDED APPLICATION
- Parking Lot
- Floods
- Street Lights
- Wall Packs
- Canopies
- High/Low Bays
PRODUCT CERTIFICATIONS
- ETL (UL-1598-C)
- DLC Premium Certified
PROTECTION AGAINST
- Short Circuit
- Over-Current
- Over-Voltage
- Over-temperature with auto-recovery
ADDITIONAL INFORMATION
- CTT (Options: 4000K, 5000K
- Beam Angle (std): 125°
- Certification: ETL (UL-1598-C) & cETL (ANSI/UL 1598/CAN/CSA C22.2); DLC by category
- Lifetime: 100,000 hours @ 55°C
- Lumens: 7,600
- Replaces: 250W HID
- Driver Input Voltage (options): 100-277V
- Wattage (options): 57W System
- Mount Type (options): Horizontal FlexMount E39, Vertical, FlexTrim Plate
- CRI: 5000K > 84
- Driver Dimming (options): 0-10V
- Efficacy (Lumens/Watt): 154 @ 5000K
RESOURCES AND DOWNLOADS
SKU | HU-DM60 |
---|---|
Weight | 16.00 LBS |
Light Source | LED |
Fixture Size | Other |
Color Rendering Index (CRI) | > 84 |
Lumen Output | 7,600 lm |
L70 Expected Life (hours) | 100,000 hours |
Color Temperature (CCT) | 4000K |
Color Temperature (CCT) | 5000K |
Total Input Watts | 57 |
