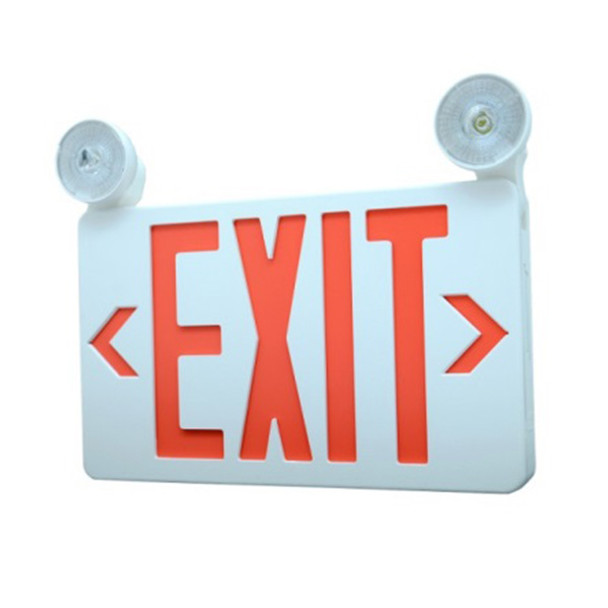

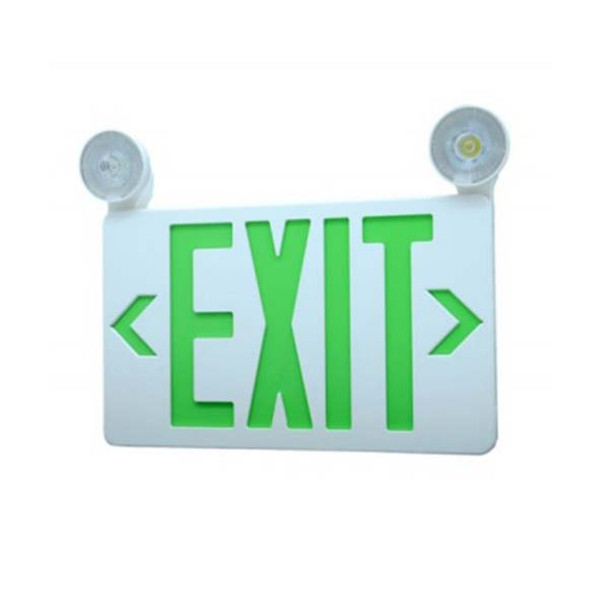

The RXEL38 Series LED Emergency Exit Sign features two adjustable heads, single or double face high impact thermoplastic faceplates with snap-in & out chevrons. This exit sign uses LED light bulbs and has a backup battery. Ideal for applications requiring attractive, quick-installation exit signs and low energy consumption.
DESIGN FEATURES
CONSTRUCTION
- Includes single or double face high impact thermoplastic faceplate. Universal snap-in & out chevrons meets all state and local UL924 codes. Also has one blank face
- Thermoplastic housing w/ flame retardant housing
- Compact, low profile design
ELECTRICAL
- 120/277V AC input, 60Hz
- Operating temperature 50º F to 104ºF
- Battery: Ni-cd Battery, 2pcs of 3.6V 900mAh for high lumen output
- 3.6V 2W remote capability and 3.6V 4W remote capabilities are available
- Light source: SMD 2x2W LED, 6000K, 250lms
- Manual test switch and LED indicator
- 90 minutes of illumination in case of power failure
- Estimated 25 year LED lamp life.
INSTALLATION
- Universal mounting (wall, side and ceiling)
- Easy, one-person installation

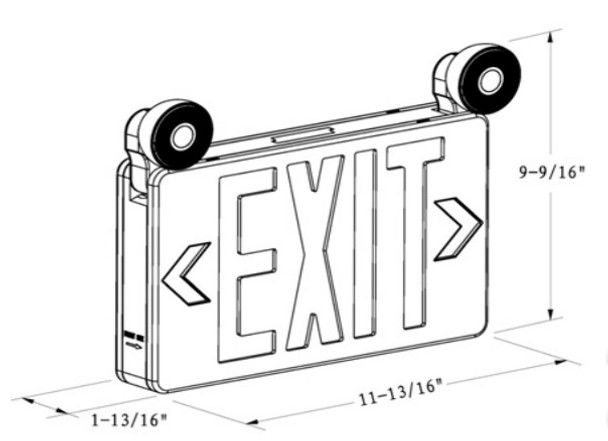

DIMENSIONS (W x D x H)
11-3/4” x 2-7/16” x 9-1/2”
FINISH
- RW= Red with white housing
- GW= Green with white housing
CERTIFICATIONS
- UL for damp location
- 5 year limited warranty
RESOURCES AND DOWNLOADS
| SKU | RP-RXEL38 |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120/277V |
| Lumen Output | 250 |
| Color Temperature (CCT) | 6000K |
