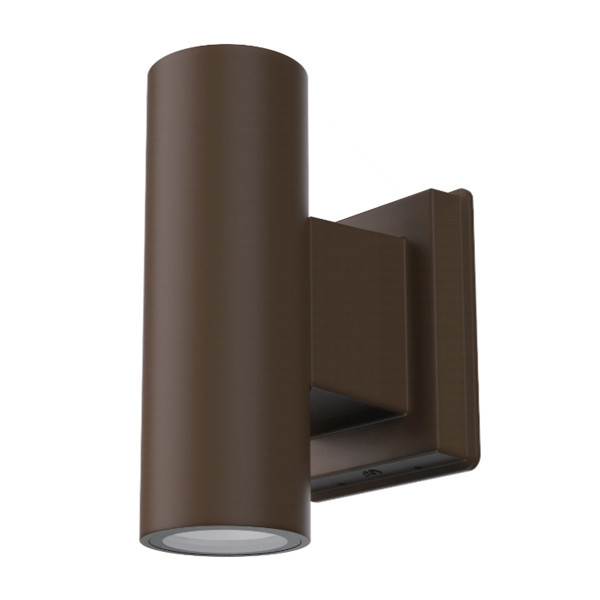

ILP Unify Outdoor Cylinder 3" Down Wall Mount, 400/500/600 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Bronze

By Industrial Lighting Products
ILP Unify Outdoor Cylinder 3" Down Wall Mount, 400/500/600 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Bronze

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ILP Unify Outdoor Cylinder 3" Down Wall Mount, 400/500/600 lm Selectable, 120-277V, 3000K/3500K/4000K Selectable, Wide Flood 60°, Bronze

$232.40
  • SKU: ILP-UC3D-04L/05L/06L-U-CCTS-W-WM-BRZ
  • MPN: UC3D-04L/05L/06L-U-CCTS-W-WM-BRZ

Quick Overview

3" outdoor wall-mount LED cylinder with selectable 400/500/600 lm output, 3000K/3500K/4000K CCT, 120-277V input, 0-10V dimming, IP65 wet-location rating, and wide flood 60° distribution.

ETL Listed
Title 24 Compliant
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP Unify Outdoor Cylinder series delivers architectural wall lighting with flexible output and color tuning in a compact, durable form factor. This 3" downlight wall-mount model is designed for exterior commercial applications where performance, visual comfort, and long-term reliability are essential. As part of ILP’s Unify lineup, it combines selectable lumens, selectable CCT, and precision optics for adaptable project design.

Key Features and Benefits

  • Selectable lumen package (04L/05L/06L) supports on-site light level adjustment for easier stocking and commissioning.
  • Field-selectable 3000K/3500K/4000K CCT enables one fixture to match multiple exterior design intents.
  • Precision wide flood 60° optic provides controlled beam performance for façade and perimeter lighting.
  • Integrated photocell with override capability supports automated dusk-to-dawn energy savings.
  • Rugged die-cast aluminum housing with stainless-steel hardware and tempered glass lens built for demanding outdoor environments.
  • ETL Listed for wet locations, RoHS compliant, FCC Part A compliant, LM-79/LM-80 tested, and Title 24 compliant.
  • 5-year standard warranty with optional 10-year coverage for long-term peace of mind.

Specifications

  • Lumen Output: 364/481/596 (3000K) | 377/497/615 (3500K) | 377/498/616 (4000K)
  • Wattage: 3W/4W/5W
  • Voltage: 120-277V, 50/60Hz
  • Dimming: 0-10V (down to 5%)
  • CRI: 80 minimum
  • Beam Angle: 60° (Wide Flood)
  • Ingress Protection: IP65
  • Operating Temperature: -40°F to 104°F (-40°C to 40°C)
  • Rated Life: 60000 hours L70 (calculated L70 up to 135000 hours)
  • Surge Protection: 4kV

Common Uses

Ideal for retail storefronts, multifamily exteriors, hospitality properties, educational campuses, healthcare facilities, and general building perimeter wall lighting where durable, wet-location-rated architectural illumination is required.

RESOURCES AND DOWNLOADS

ILP Unify Outdoor Cylinder 3" Down Wall Mount Spec Sheet
