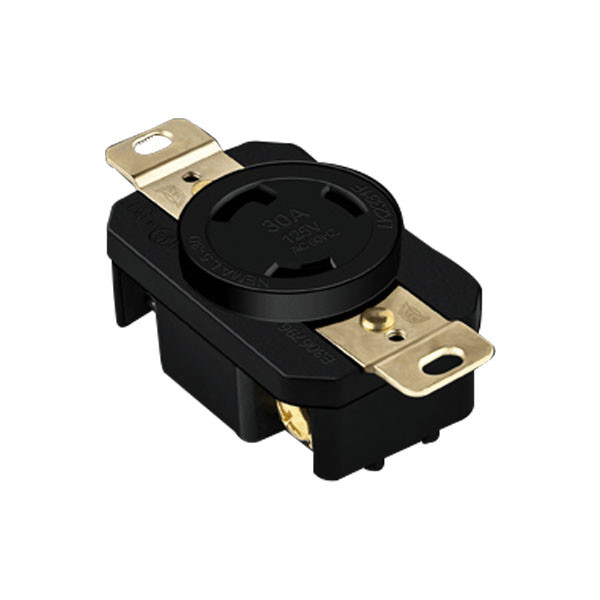

Industrial grade locking receptacle, 30A, L14-30R, nylon construction, visible NEMA ratings, nickel plated receptacle strap, flammability UL94, V2 rating, high impact-resistant chemical-resistant nylon, reinforced thermoplastic polyester, ratings and NEMA identification are permanently marked on device.

Minimum order qty. of 10 pcs.

DESCRIPTION

Enerlites's locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.

FEATURES

• Nylon Construction, Visible NEMA Ratings, Nickel Plated Receptacle Strap
• Flammability UL94, V2 Rating
• High Impact-Resistant Chemical-Resistant Nylon
• Reinforced Thermoplastic Polyester
• Ratings and NEMA identification are permanently marked on device.

SPECIFICATIONS

• Type: Locking devices
• Rating: 30Amp, 125/250Volt
• Wiring Scheme: 3 Pole, 4 Wiring Grounding
• Nema Configuration: L14-30R
• Max Working Voltage: 250VAC
• Termination: #14 to #8 AWG Solid Copper Wire
• Contact Blade Material: Rivetless Copper Alloy
• Standards and Certifications: UL Listed
