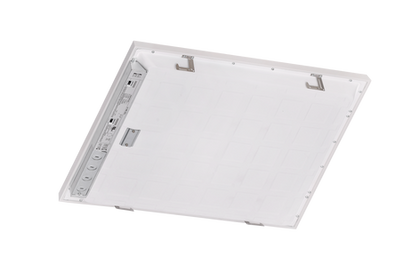

LED Architectural Recessed Luminaire, 2'x2', 120-277V, Tunable Wattage, 3000K/3500K/4000K/5000K/6500K, 0-10V Dimmable

By Honya Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LED Architectural Recessed Luminaire, 2'x2', 120-277V, Tunable Wattage, 3000K/3500K/4000K/5000K/6500K, 0-10V Dimmable

$49.60
  • SKU: HY-PB03A-2X2P-H-TWCC
  • MPN: PB03A-2X2P-H-TWCC

Quick Overview

Honya PB03A 2'x2' architectural LED panel with tunable 15/20/25/30/40W and selectable 3000K-6500K CCT, delivering up to 4890 lumens with 0-10V dimming for offices, schools, retail, and healthcare spaces.

UL Listed
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Honya Lighting PB03A Series is an architectural recessed LED luminaire designed for modern commercial ceiling grids. Built for flexibility, this 2'x2' model combines tunable wattage and multi-CCT selection to simplify stocking and adapt light output to changing project needs. It is a core solution in the lineup for efficient, glare-controlled indoor illumination.

Key Features and Benefits

  • Field-selectable wattage and CCT let installers fine-tune brightness and color on site.
  • Backlit optical design promotes smooth, low-glare light distribution for visual comfort.
  • High efficacy performance up to 140 lm/W helps reduce operating energy costs.
  • UL Listed and DLC listed for trusted compliance and potential utility rebate eligibility.
  • 0-10V dimming support enables seamless control integration in commercial projects.
  • Backed by a 5-year warranty for long-term confidence.

Specifications

  • Size: 2'x2'
  • Lumen Output: 4890
  • Wattage: 40/30/25/20/15W
  • Input Voltage: 120-277V
  • Color Temperature: 6500K/5000K/4000K/3500K/3000K selectable
  • CRI: >80
  • Beam Angle: 110°
  • Power Factor: >0.9
  • Dimming: 0-10V
  • IP Rating: IP20 (indoor use only)
  • Rated Life: 50,000+ hours (L70 >70%)
  • Operating Temperature: -13°F to +113°F (-25°C to +45°C)

Common Uses

Ideal for offices, schools, showrooms, airports, retail stores, and healthcare facilities where efficient, uniform, and configurable ambient lighting is required.
