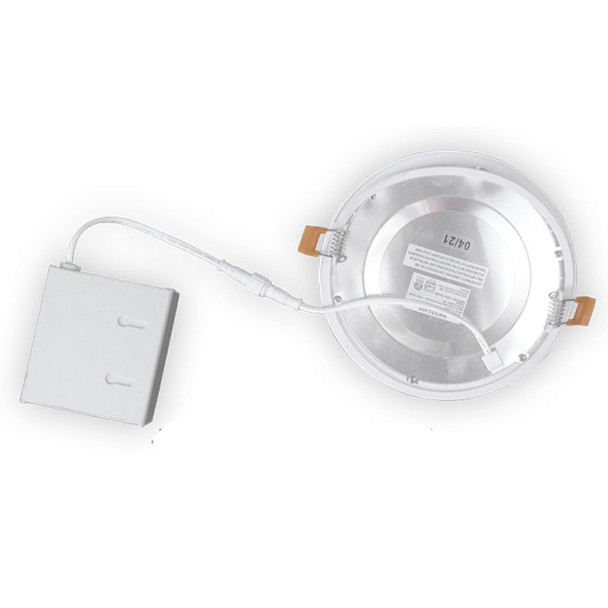

Versatile 12W LED Downlight: Selectable Color Temperatures

Illuminate your spaces efficiently with our 12W LED downlight featuring selectable color temperatures ranging from 2700K to 5000K. This fixture provides a stunning output of 1000 lumens and is dimmable down to 10% with a standard TRIAC LED dimmer, making it ideal for both residential and commercial applications.

Key Features and Benefits

Adjustable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
Delivers 1000 lumens of bright light
Dimmable down to 10% with a TRIAC LED dimmer
Impressive lifespan of 50,000 hours
High efficacy of 83 lumens per watt
Color Rendering Index (CRI) of ≥ 80 for true color representation
White translucent acrylic lens ensures soft light diffusion
Rotatable design for post-installation alignment
Isolated driver for enhanced thermal management
Backed by a 5-year warranty

Technical Specifications

Wattage: 12W
Voltage: 120V AC
Output Voltage: 36V DC
Power Factor: Greater than 0.90
Total Harmonic Distortion: Less than 15%
Beam Angle: 100°-110°
Maximum Ambient Temperature: -40°F to 104°F (suitable for varied climates)
Approved for direct contact with insulation
Rated for damp locations

Common Uses

This LED downlight is perfect for new and retrofitting projects in residential and commercial settings. Ideal for closets, storage areas, attics, corridors, and general purpose lighting applications.

Resources and Downloads

LED Downlight Spec Sheet

Westgate Resources and Downloads

Installation Instructions

Details

Beam Angle:	100°
CRI:	80
Color Temperature:	2700K\|3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|ETL Listed
Country of Origin:	THAILAND
Dimming Type:	Phase
Finish / Color:	Black
Housing Material:	Aluminum
IP Rating:	IP44
Item Height (Inch):	0.826771653543307
Item Length (Inch):	6.61
Item Weight (LBS):	0.837748
Item Width (Inch):	6.61
L70 Expected Life (hours):	30000hr
LED Type:	San'an SMD2835
Lens Material:	Polycarbonate Lens
Lumen Output:	1000
Operating Temperature:	-4°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
THD:	<20%
Voltage:	100-130V
Wattage:	12W
