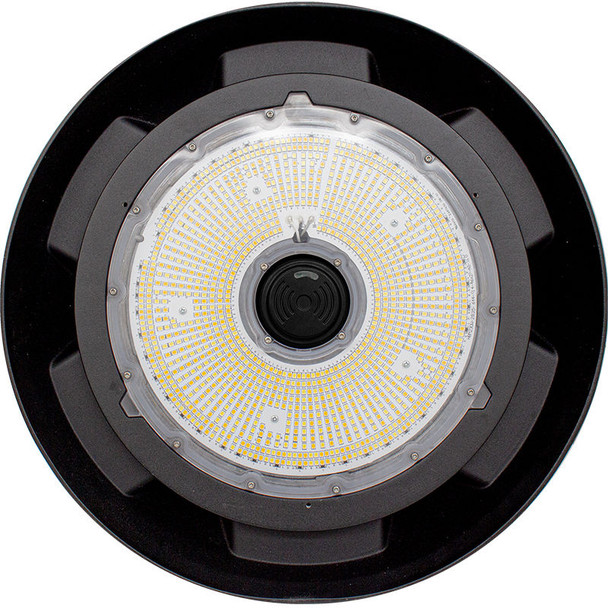

Westgate LED UFO Highbay UHX Series - Premium Industrial Lighting Solution

The Westgate LED UFO Highbay UHX Series is your ultimate industrial lighting solution, engineered to meet the rigorous demands of industrial environments. Featuring an aluminum shell designed for superior heat dissipation, this robust lighting option boasts an IP65 water-resistant rating, making it perfect for wet locations. Illuminate everything from general sites and loading docks to pathways, parking areas, warehouses, and storage buildings.

Outstanding Features and Benefits

Waterproof Design: Perfect for wet locations.
Multi-Color Temperature & Multi-Power: Offers versatile lighting customization.
Durable Lens: High light transmittance, anti-UV, and fire-resistant optical lens.
Long Lifespan: Operates up to 50,000 hours.
High Efficacy: Provides 130 lumens per watt.
Dimmable: 0~10V dimming capability for energy savings.

Technical Specifications

Input Wattage: 100W/150W/200W/230W
Input Voltage: 120-277V AC 50/60Hz
Power Factor: >0.9
Total Harmonic Distortion (THD): <20%
Operating Temperature: -40°F to 122°F
IP Rating: IP65, suitable for wet locations
Color Rendering Index (CRI): >80
Beam Angle: 110°

Perfect for Various Applications

This high-performance highbay light is ideal for:

General Site Lighting
Alleys
Loading Docks
Doorways
Pathways
Parking Areas
Warehouses
Storage Buildings

RESOURCES AND DOWNLOADS

UFO Highbay UHX Series Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B4-U3-G2
Beam Angle:	90°
CRI:	80
Color Temperature:	3000K\|4000K\|5000K\|5700K
Compliance & Warranty:	5 Year Warranty\|DLC Premium\|UL Listed\|DLC Standard
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	125LM/W
Finish / Color:	Black
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	10.375
Item Length (Inch):	16.25
Item Weight (LBS):	11.773
Item Width (Inch):	16.25
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	PC Lens
Lumen Output:	15500\|22500\|29000\|32200\|12500\|18750\|25000\|28750
Operating Temperature:	-40℉~+113℉
Power Factor:	>0. 9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	100W\|150W\|200W\|230W
