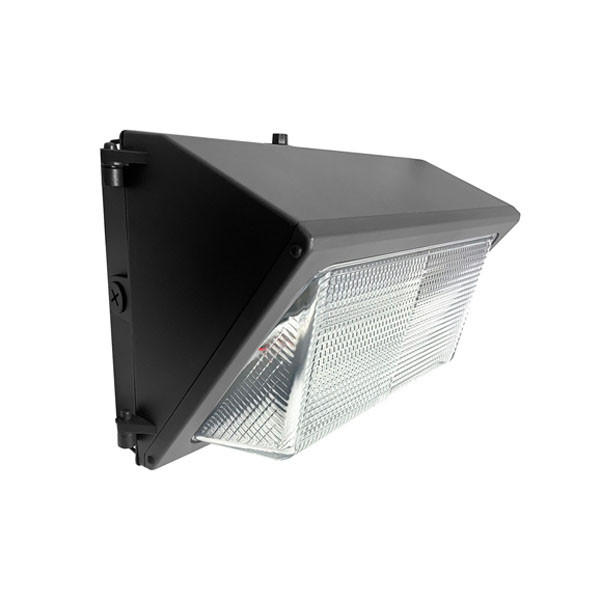

Wall pack, 60W/ 80W/ 120W power selectable, 8,286-16,572 lumens, available in 5000K color temperature (CCT), up to 50,000 hours rated life, 5 years limited warranty.
CONSTRUCTION
Heavy die-cast aluminum alloy housing with bronze powder-coated finish. Glass lens.
OPTICAL SYSTEM
Lumileds LUXEON 3030 2D LED chips. High quality tempered glass optics. 120° beam angle.
WARRANTY
5-year limited warranty. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL
Available as 120-277V input. -40°C to 40°C, -40°F to 104°F
INSTALLATION & DIMMING
Wall Mounting with quick mount back plate for easy installation.
CONTROLS & DIMMING
0-10V dimming comes standard. Photocell is included.
FEATURES
- Default Wattage:
- 60W
- 120W
- IP65 rated
- Easy installation and maintenance
- Corrosion and rust proof
- Photocell included
- Semi cut-off
- 50,000 hours lifetime
SUITABLE APPLICATIONS
- Warehouses
- Stadiums
- Factories
- Parking Lots
- Shopping Malls
- Supermarkets
- Logistic Centers
- Auto dealerships
RESOURCES AND DOWNLOADS
| SKU | LOD-LOC-WP-MW(60/80/100/120)50KDLV |
|---|---|
| Weight | 16.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120-277V |
| Lumen Output | 8,286lm-16,572lm |
| Luminaire Efficacy Rating (LER) | 138.1lm/W |
| Color Rendering Index (CRI) | 74 |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 60W/80W/100W/120W |
