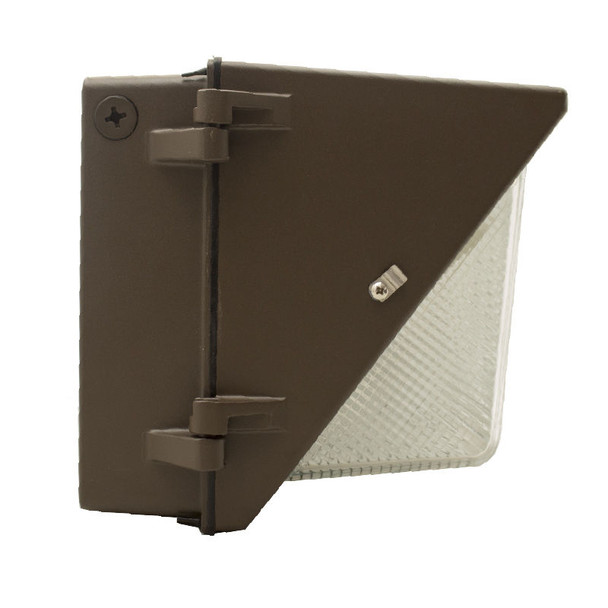

WMX series power adjustable non-cutoff wall pack, 50-120 watts, available in 3000K, 4000K or 5000K color temperature (CCT), 16,500 lumens max, 70,000 hours rated life, 7 years warranty.
FEATURES
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating
- Connect One End or Both Ends (Dual Function)
- Multi-Power Switch is inside the Fixture
- 7-year warranty
- Prismatic Borosilicate Glass Lens
ELECTRICAL
- Input Wattage: 50/80/100/120W
- Input Voltage: 120-277V AC 50/60Hz
- Input current: 1.4 A
- Power factor: >0.9
- Efficacy: 130 LPW
MECHANICAL
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating
- Lens: Prismatic Borosilicate Glass Lens
- Same Footprint as Traditional HID Wall Packs
- Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
- Mounting: Wall Mounting
- Operating Temperature: -40°F ~ 104°F
- Lifespan: 70000 Hrs.
- IP rating: IP65, Wet Locations
LIGHTING
- Dimming: 0-10V Dimming
- Chip: Lumileds LEDs
- Multi-Power Switch is inside the Fixture
- Total Lumens: 16500LM Max.
- Color Temperature: 3000K/4000K/5000K
- CRI: >70
APPLICATIONS
- Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- Replace existing HID wall packs
- Great for use with photocell
RESOURCES AND DOWNLOADS
| SKU | WM-WMX-LG-50-120W |
|---|---|
| Weight | 10.00 LBS |
| Light Source | LED |
| Color Rendering Index (CRI) | >70 |
| Lumen Output | 70,00lm-16,500lm |
| L70 Expected Life (hours) | 70,000hrs. |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 50W/80W/100W/120W |
