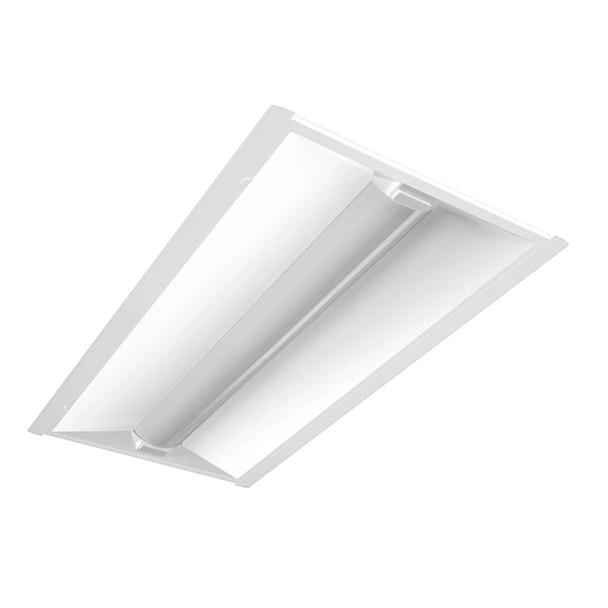

LEDone LOC-24HTRK LED Troffer Retrofit Kit Light, 2x4, 25W/30W/35W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base

By LEDone Distribution
LEDone LOC-24HTRK LED Troffer Retrofit Kit Light, 2x4, 25W/30W/35W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

LEDone LOC-24HTRK LED Troffer Retrofit Kit Light, 2x4, 25W/30W/35W, 3500K/4000K/5000K, 120-277V, Built-in Sensor Base

$83.25
  • SKU: LOD-LOC-24HTRK-MW35W3CCT
  • MPN: LOC-24HTRK-MW35W3CCT

Quick Overview

LEDone 2x4 troffer retrofit kit with selectable 25W/30W/35W and 3500K/4000K/5000K, delivering up to 4900 lumens at 140 lm/W. Features 0-10V dimming, built-in sensor base, and long 100,000-hour life for commercial interiors.

UL Listed
WARRANTY 5 YEARS
IP20
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The LEDone LOC-24HTRK from the LOC-##HTRK family is a high-performance 2x4 LED troffer retrofit kit designed to modernize existing fluorescent troffers. Built for demanding commercial environments, it combines selectable wattage and CCT with efficient, glare-controlled illumination and sensor-ready flexibility.

Key Features and Benefits

  • Selectable output lets you tune light levels with 25W, 30W, or 35W settings for project flexibility.
  • Tri-CCT capability (3500K/4000K/5000K) supports visual comfort across varied interior applications.
  • Built-in sensor base simplifies future smart control upgrades with compatible PIR and Bluetooth PIR accessories.
  • Durable die-formed 24-gauge steel housing with high-reflectance coated reflector improves light utilization.
  • 0-10V dimming support enables energy-saving control strategies in commercial spaces.
  • UL Certified construction and a 5-year limited warranty provide dependable long-term value.

Specifications

  • Lumen Output: 3500|4200|4900
  • Efficacy (lm/W): 140
  • Voltage: 120-277V
  • CRI: 80
  • Beam Angle: 97°
  • Power Factor: 0.9
  • THD: 15
  • Operating Temperature: -40°C to 40°C (-40°F to 104°F)
  • IP Rating: IP20
  • Rated Life (70 Hours): 100000
  • Dimensions: 46.89" x 20.87" x 1.61"
  • Net Weight: 8.22lbs

Common Uses

Ideal for warehouses, schools, manufacturing facilities, convention centers, offices, supermarkets, logistics centers, big-box retail stores, exhibition halls, and gymnasiums where efficient, retrofit-friendly overhead lighting is required.

RESOURCES AND DOWNLOADS

LEDone LOC-24HTRK LED Troffer Retrofit Kit Light Spec Sheet
